項目名稱
《只此周莊》劇場立面設計
建筑事務所
中國美院風景建筑設計研究總院 + 猜一建筑
項目地址
周莊鎮,昆山市,江蘇省
項目年份
2024 年
項目面積
約 1.7萬平方米
EPC 設計總包
中國美術學院風景建筑設計研究總院有限公司
立面改造設計咨詢
猜一建筑（蘇州）有限公司
項目主持、總設計
余丁宗
立面改造設計主創
吳皓天,王赟,胡量,Naomi Ng
設計院總協調
杜瑞鵬
建筑、結構團隊
謝旭龍,吳麗妹,何泳,孫濤,楊力勛,王超俊
EPC總包牽頭單位
昆山經濟技術開發區建筑安裝工程有限公司
景觀
蘇州園林設計院
照明
上海尋光設計
幕墻施工
蘇州紹新思建筑科技
文化顧問
杭州泰立文化藝術有限公司
業主
江蘇水鄉周莊旅游股份有限公司
攝影師
王赟
![]()
![]()
該項目位于江蘇省周莊市的入口處，將一座長期空置的2003年酒店建筑群改造成沉浸式劇場空間，上演由周莊鎮政府和中國東方演藝集團聯合制作的《只此周莊》。EPC合同由中國美術學院風景建筑設計研究總院負責，余丁宗工作室承擔項目總設計，而猜一建筑團隊負責立面的設計與深化工作。
The project is located at the entrance of Zhouzhuang, Jiangsu, and transforms a long-vacant 2003 hotel complex into the immersive theater space for Zhouzhuang Odyssey, a performance jointly produced by the Zhouzhuang Town Government and the China Oriental Performing Arts Group. The China Academy of Fine Arts Landscape Architecture Design and Research Institute led the EPC contract, with Dingzong Yu Studio as the design lead, and our team responsible for fa?ade adaptation.
![]()
![]()

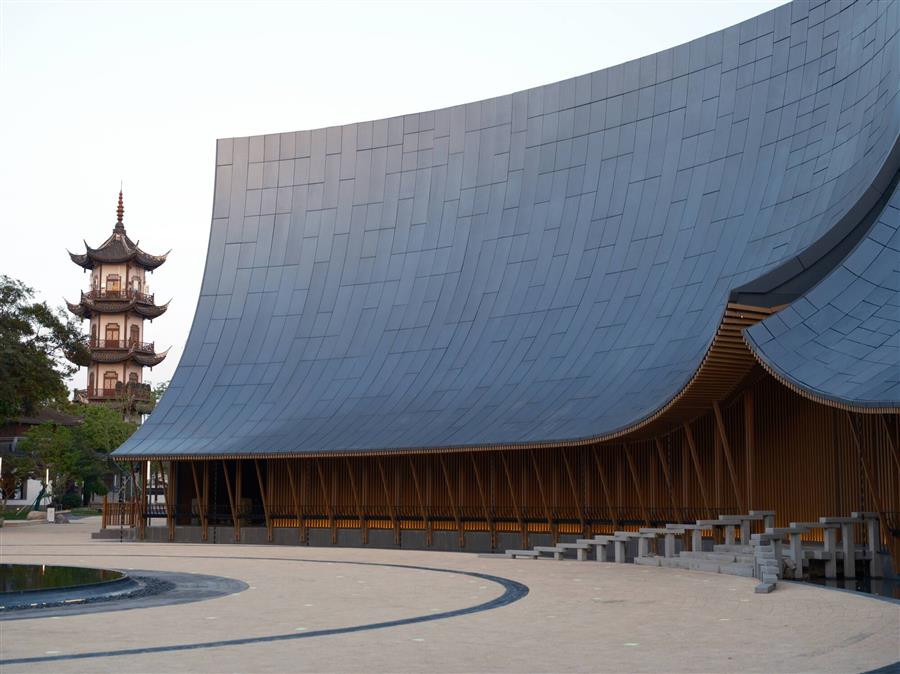

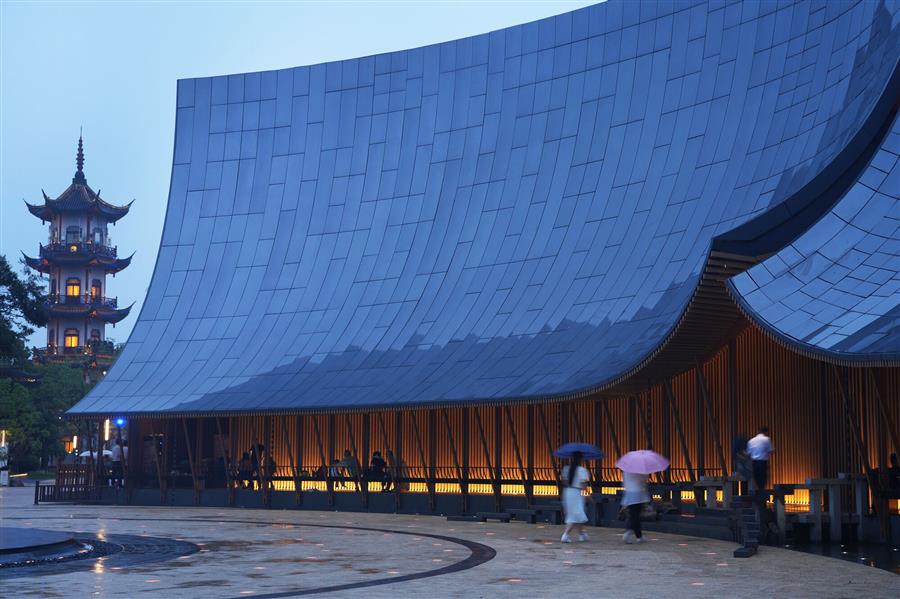

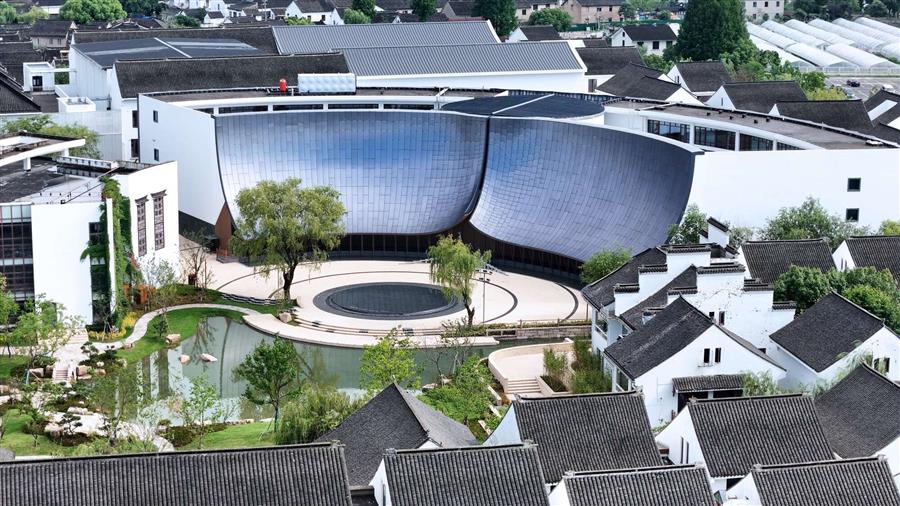

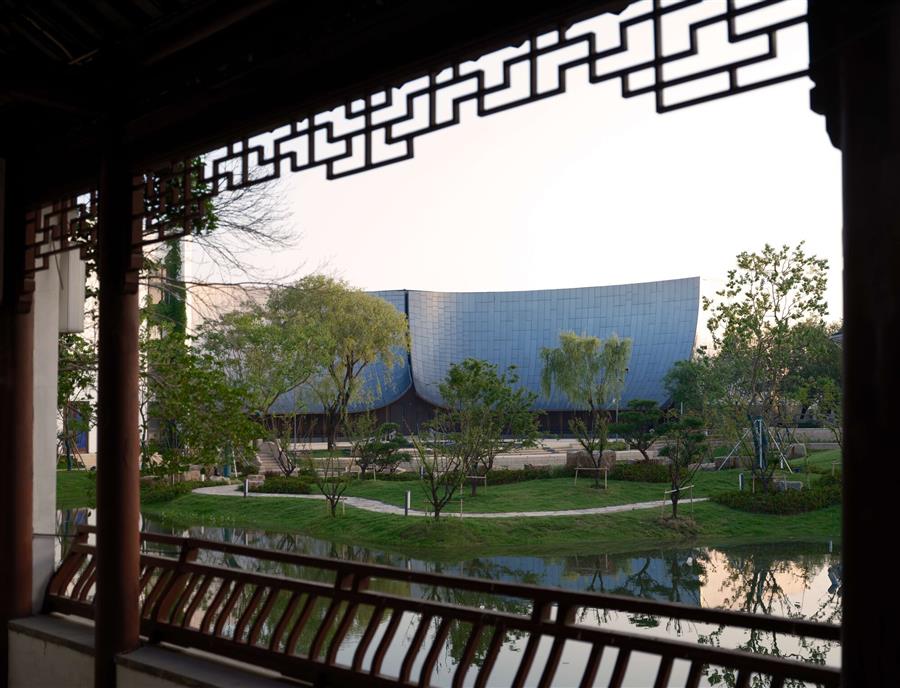

主要的挑戰是改造這個最初設計為酒店的超大建筑，以更好地適應這個千年水鄉的規模和氛圍。設計不僅需要回應文化象征，還需要結合觀眾流通、設備進出等實際的表演后勤。我們沒有將建筑覆蓋在傳統的圖案中，而是引入了“窗簾”這個概念，這是一個視覺和隱喻都有效的概念。兩塊彎曲的、像窗簾一樣的鋁板輕輕地掩蓋了原來的形式，創造了一個明亮、開放的印象。抬高的入口暗示著戲劇的期待，而后面的黑暗走廊形成了一個讓人想起中國傳統山墻屋頂?shù)募粲?，為現代干預提供了一個文化錨。
The main challenge was adapting the oversized building, 900ly designed as a hotel, to better fit the scale and atmosphere of the thousand-year-old water town. The design not only needed to respond to cultural symbolism, but also incorporate practical performance logistics like audience circulation and equipment access.Rather than covering the building in traditional motifs, we introduced The Curtain—a concept that works both visually and metaphorically. Two curved, curtain-like aluminum panels gently mask the 900 form, creating a light, open impression. The lifted entrance hints at theatrical anticipation, while the dark corridor behind forms a silhouette reminiscent of traditional Chinese gabled roofs—offering a cultural anchor to the modern intervention.
![]()
![]()

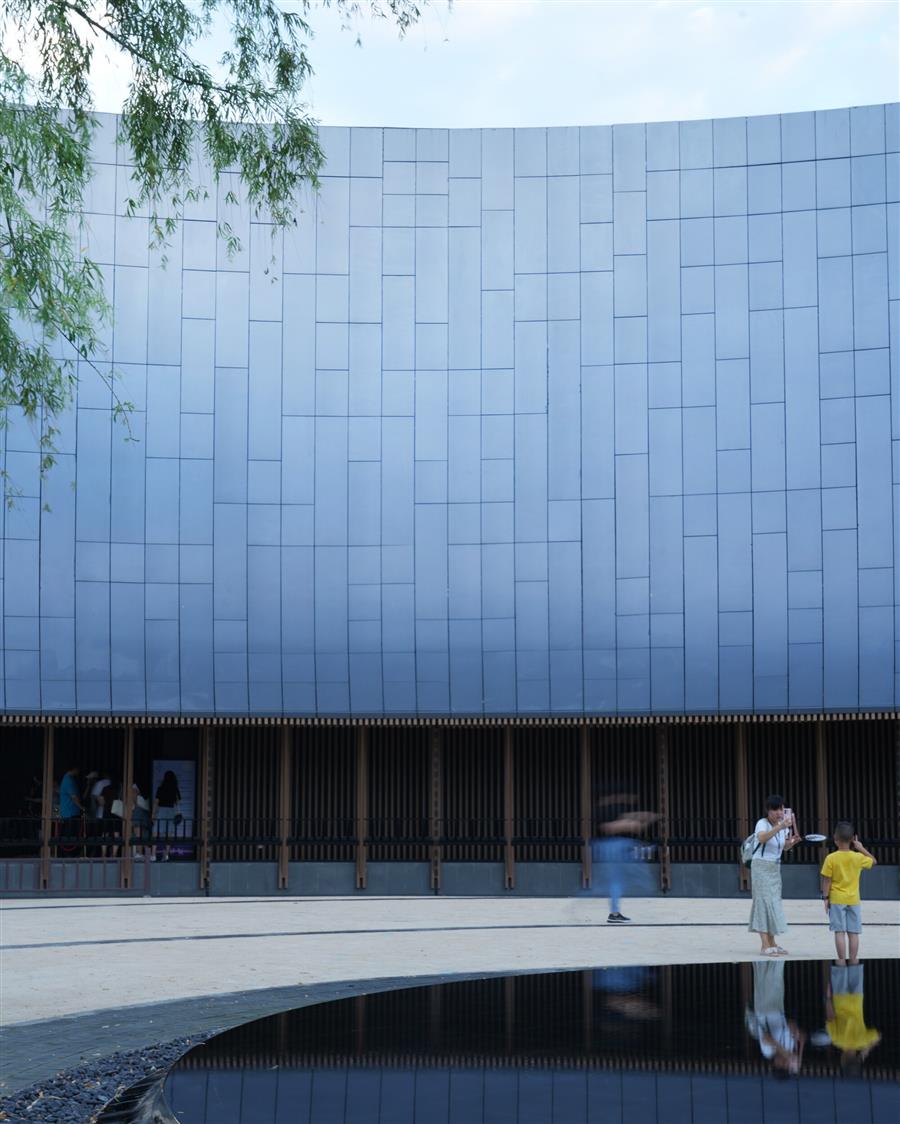

“The Curtain”必須對多種因素做出反應：結構加固、走廊寬度和制造復雜性。早期采用了參數化設計策略來有效地管理設計變更，允許在整個開發過程中進行調整。選擇陽極氧化鋁板，因?yàn)樗鼈兡軇?dòng)態反射自然光。最終設計采用了20mm厚的蜂窩板，平衡了材料成本和可施工性。通過離散化最小化雙曲面面板的使用，在高曲率區域使用較小的面板-讓人想起傳統屋頂瓦片的規模。
"The Curtain" had to respond to multiple factors: structure reinforcement, corridor widths, and fabrication complexity. A parametric design strategy was adopted early on to manage design changes efficiently, allowing for ongoing adjustments throughout development. Anodized aluminum panels were chosen for their dynamic reflection of natural light. The final design used 20mm-thick honeycomb panels, balancing material cost and constructability. Double-curved panel use was minimized through discretization, with smaller panels used in high-curvature areas—recalling the scale of traditional roof tiling.
![]()
![]()
![]()
由于場地條件的限制，通常的大面板吊裝方法是不可行的。相反，安裝依賴于全站輔助的布局、鋼定位板和經驗豐富的承包商的現場微調。這個過程通過一個完整的基于bim的工作流程實現了1060個獨特面板的精確放置。為了將劇院的多王朝美學與當?shù)剡z產結合起來，團隊與導演、客戶和周莊居民進行了廣泛的磋商。前廊和入口走廊被設計成一個系統——既能引導觀眾，又能體現當?shù)氐目臻g肌理。
Due to tight site constraints, the usual large-panel hoisting method was not feasible. Instead, installation relied on Total Station-assisted layout, steel positioning plates, and on-site fine-tuning by experienced contractors. This process enabled the accurate placement of 1,060 unique panels through a complete BIM-based workflow. To align the theater's multi-dynastic aesthetic with local heritage, the team engaged in extensive consultations with directors, clients, and Zhouzhuang residents. The fa?ade and entrance corridor were designed as one system—both functionally guiding audiences and embodying local spatial textures.
![]()
![]()
![]()

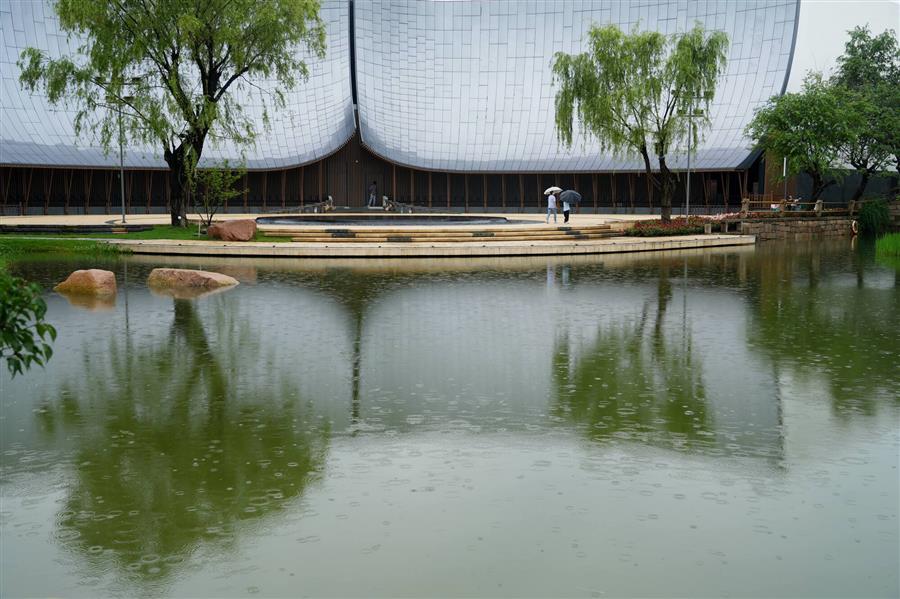

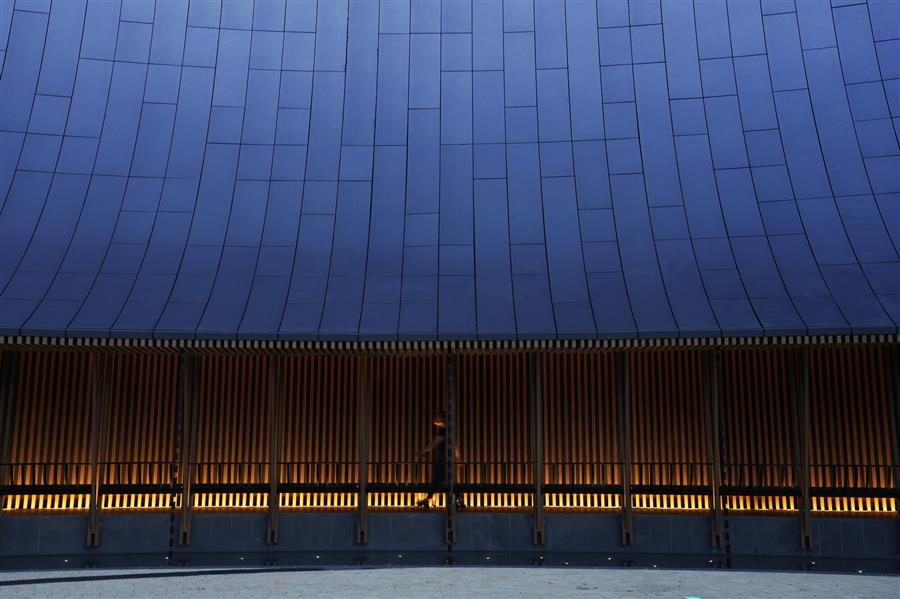

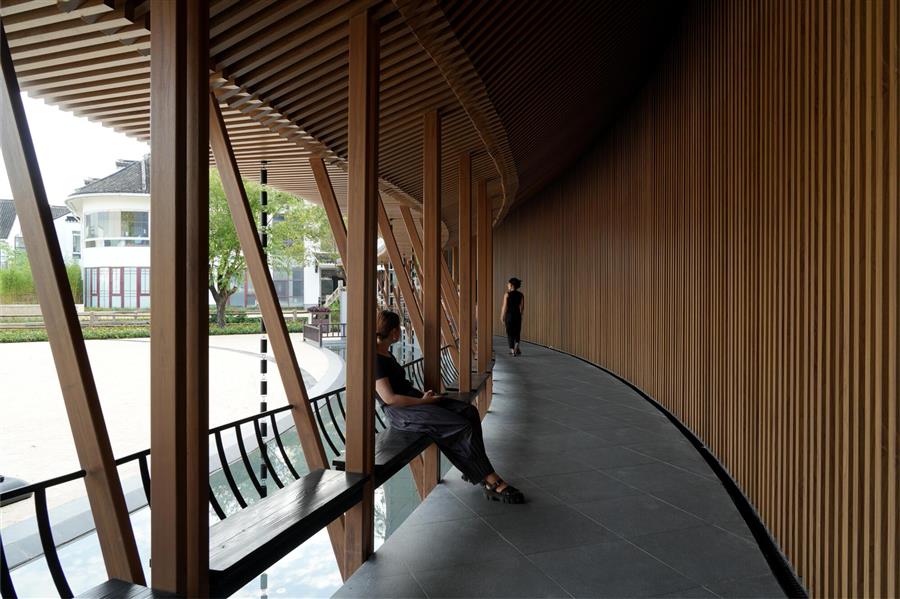

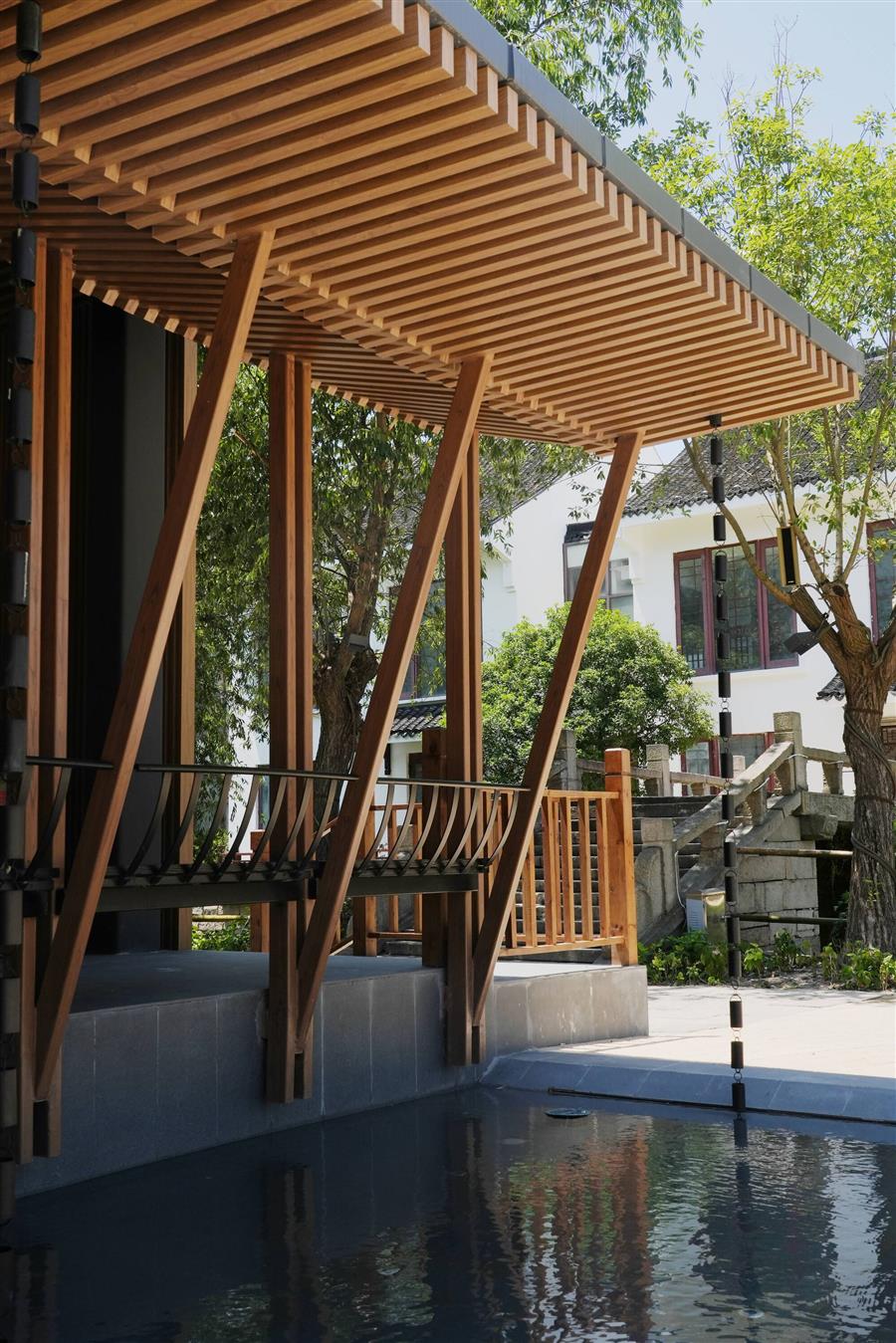

走廊使用50×100網格模塊組織所有可見的建筑元素，包括墻壁、天花板、雙柱和屋檐。模塊化的重復和輕微的變化在窗簾下創造了分層和輕量級的行人體驗。雨水被視為一個設計機會。一個隱藏的排水系統將水從表面接縫引導到屋檐排水溝和雨鏈，流入下面的水池。在雨天，街面顯得陰沉而有質感；在陽光下，它閃爍著明亮的藍色，這是對周莊自然氣候的詩意回應。

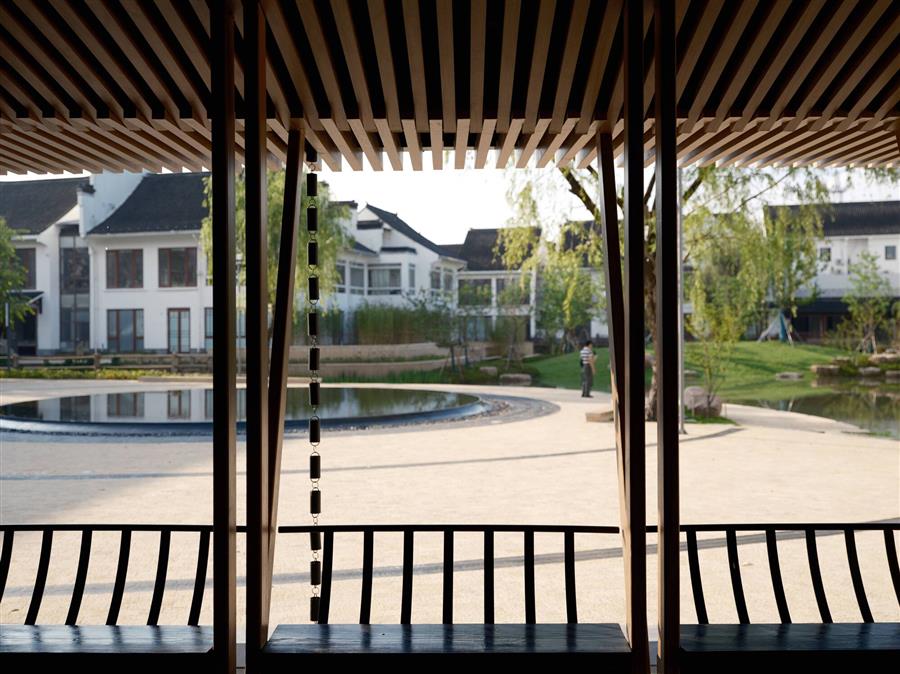

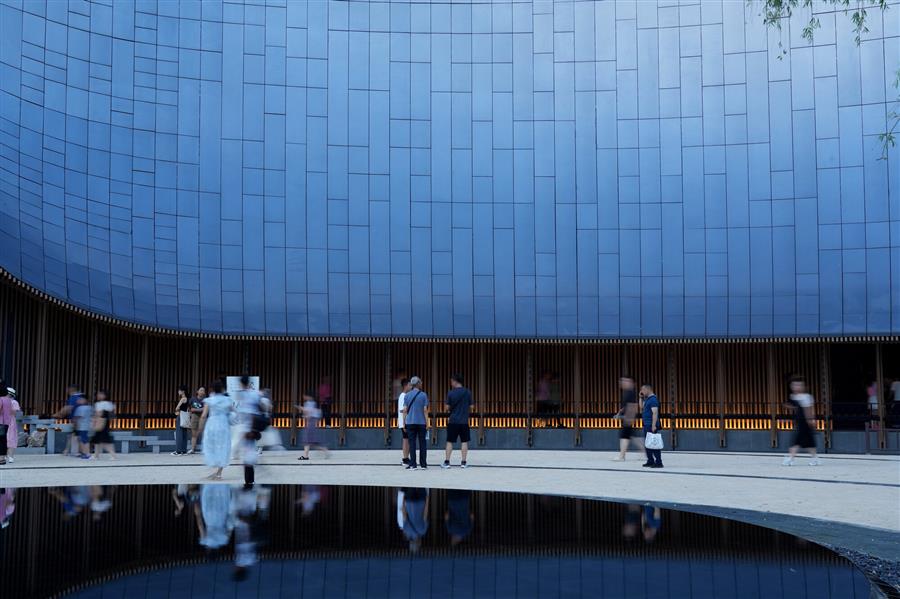

The corridor uses a 50×100 grid module that organizes all visible architectural elements, including walls, ceilings, twin columns, and eaves. Modular repetition and slight variation create a layered and lightweight pedestrian experience beneath the curtain. Rain was treated as a design opportunity. A hidden drainage system channels water from surface seams to eaves gutters and rain chains, feeding into pools below. On rainy days, the fa?ade appears somber and textured; under sunlight, it shimmers in bright blue—a poetic material response to Zhouzhuang's natural climate.
![]()
![]()
![]()

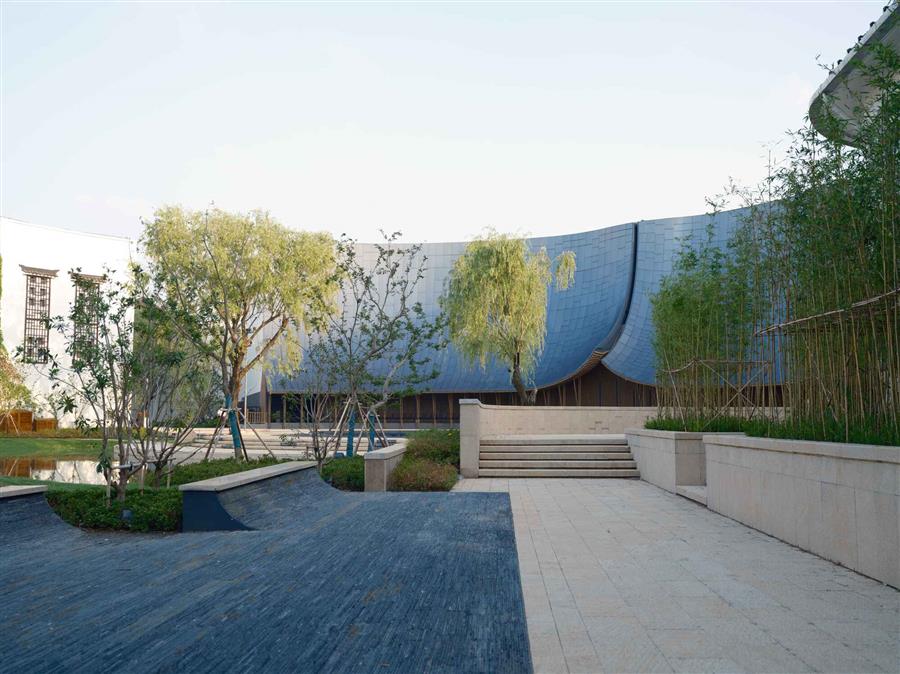

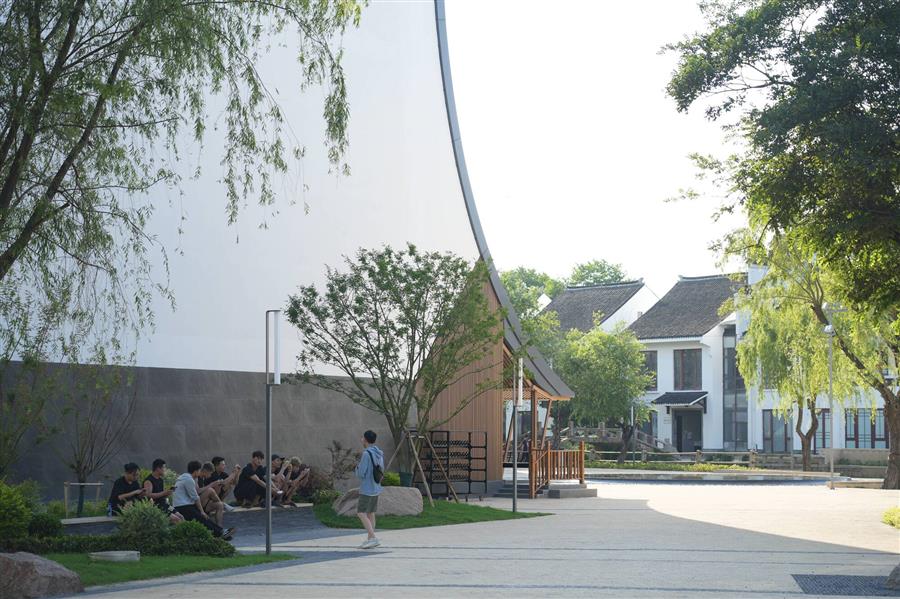

劇院橫跨三個相鄰的建筑，每個建筑都有不同的立面條件。窗簾的概念在空間上得到了擴展，在面板后面形成了一個連續的樓梯，為未來的戶外表演和觀眾互動提供了空間。四個穿孔鋁板類型的組合用于在表面上創造柔軟的織物效果，將傳統參考與現代性能需求相結合。
The theater spans three adjacent buildings, each with distinct fa?ade conditions. The concept of the curtain was extended spatially, forming walkable areas like a continuous staircase behind the panels—offering room for future outdoor performances and audience interaction. A combination of four perforated aluminum panel types was used to create a soft, fabric-like effect across the surface, blending traditional reference with modern performance needs.
![]()
![]()
項目圖紙
![]()
![]()
![]()

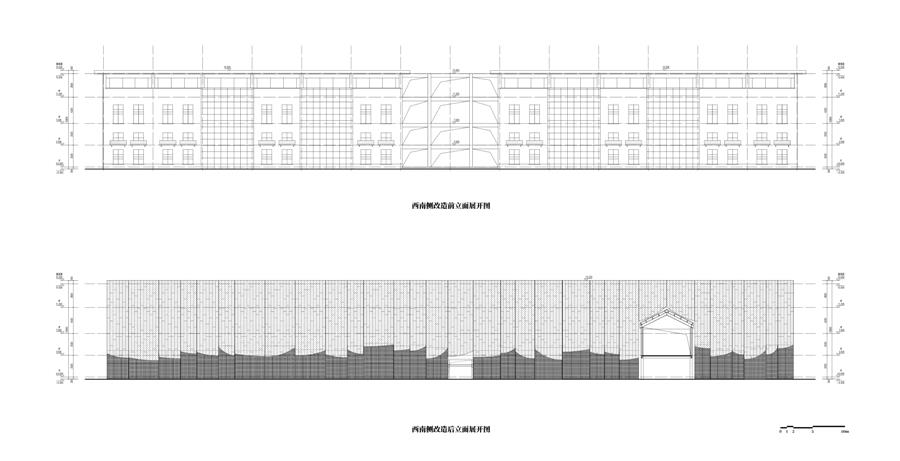

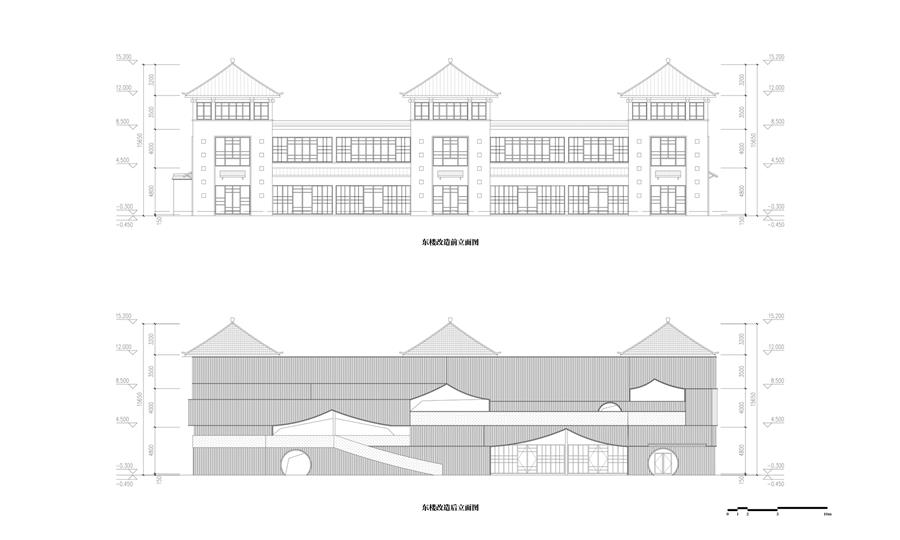

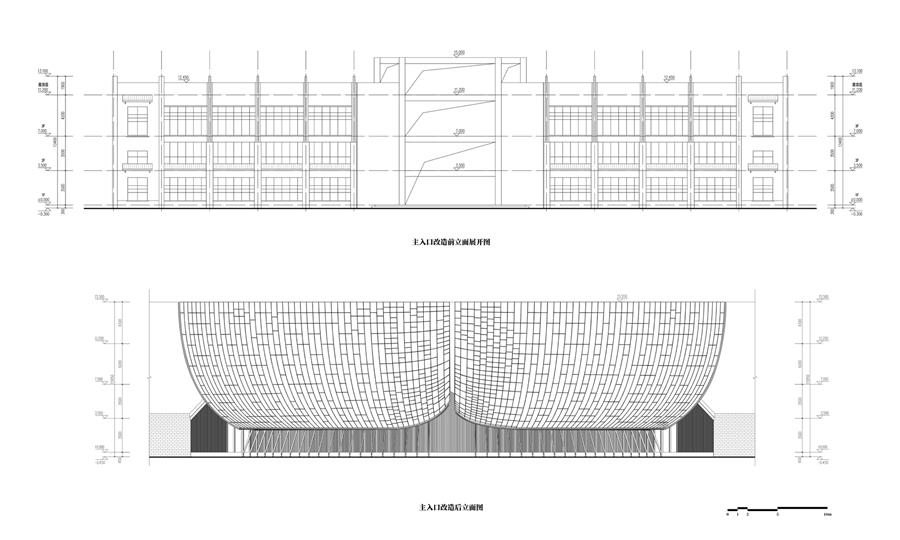

▲立面圖
![]()
![]()

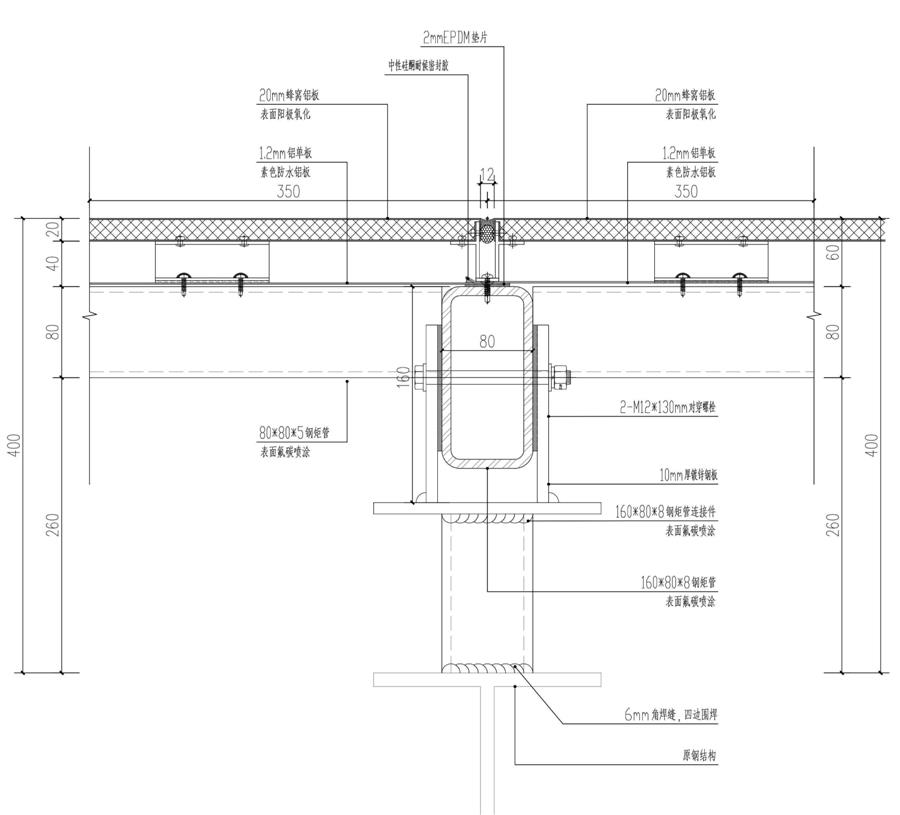

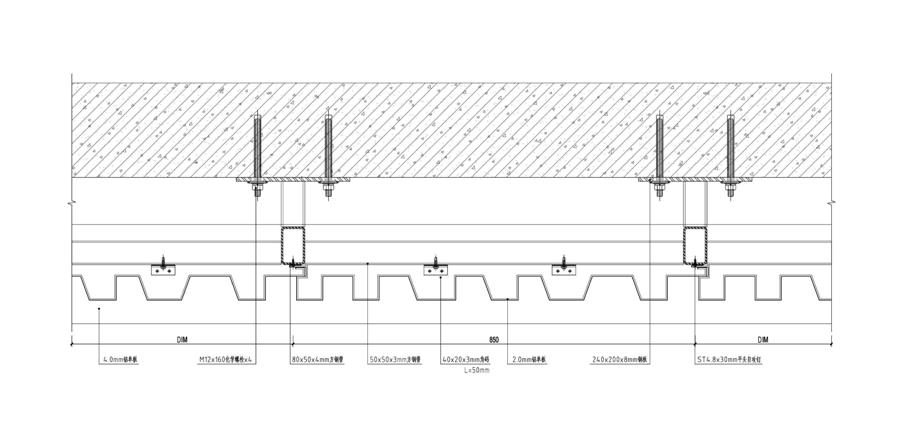

▲大樣圖
![]()

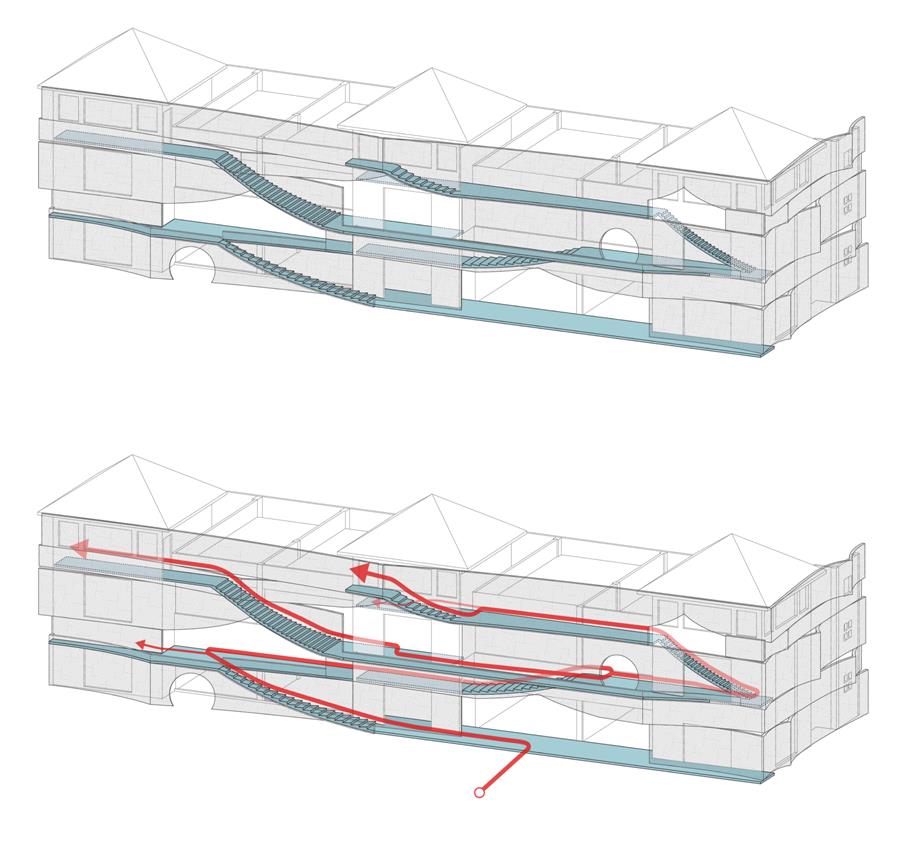

▲流線分析
![]()

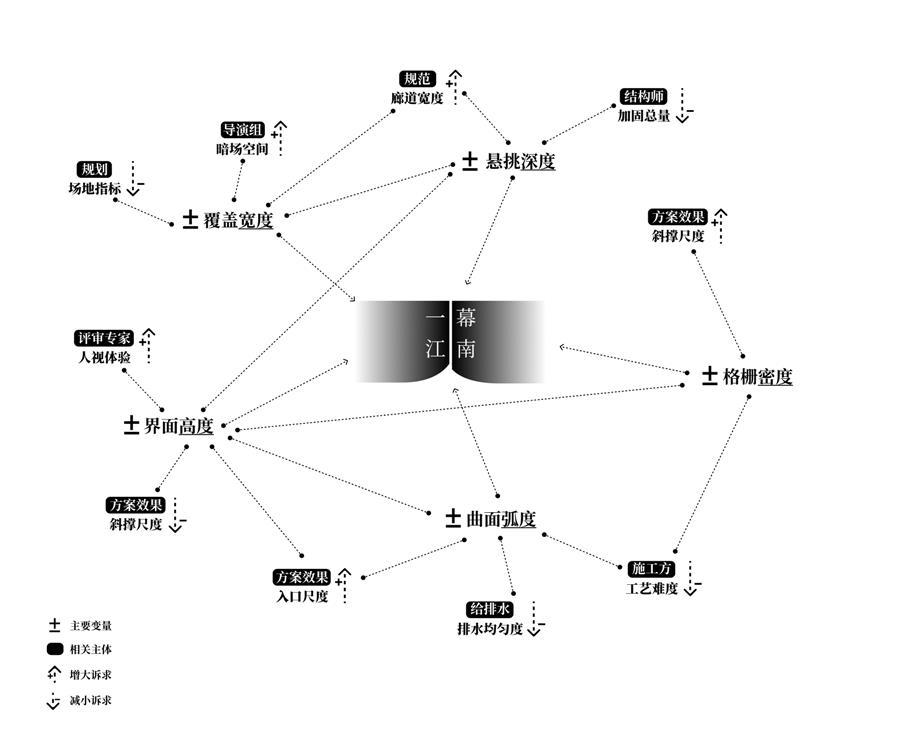

▲概念分析圖
![]()

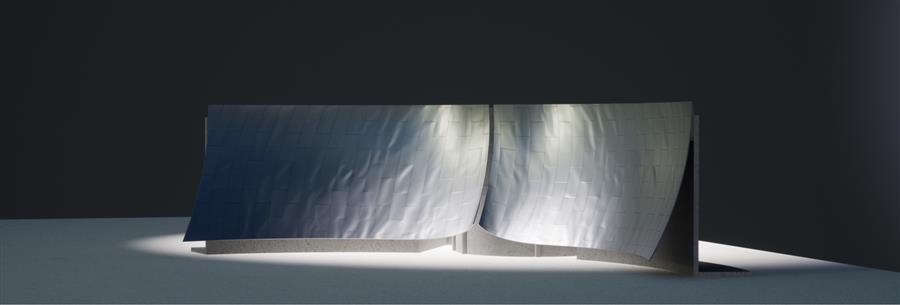

▲模型圖
