設計單位
Renzo Piano建筑工作室
地址
越南
![]()
Renzo Piano建筑工作室（RPBW）與悉尼和河內的PTW建筑事務所合作，開始在越南河內建造Isola della Musica，這是一座新的歌劇院和會議中心。該項目由太陽集團委托，于2017年首次構思，是重塑西湖和??m trong湖之間現有邊界的更廣泛總體規劃的一部分。受該地區珍珠種植歷史的啟發，該建筑以一系列彎曲的混凝土外殼為特色，其形狀和表面喚起了珍珠母的紋理和亮度。

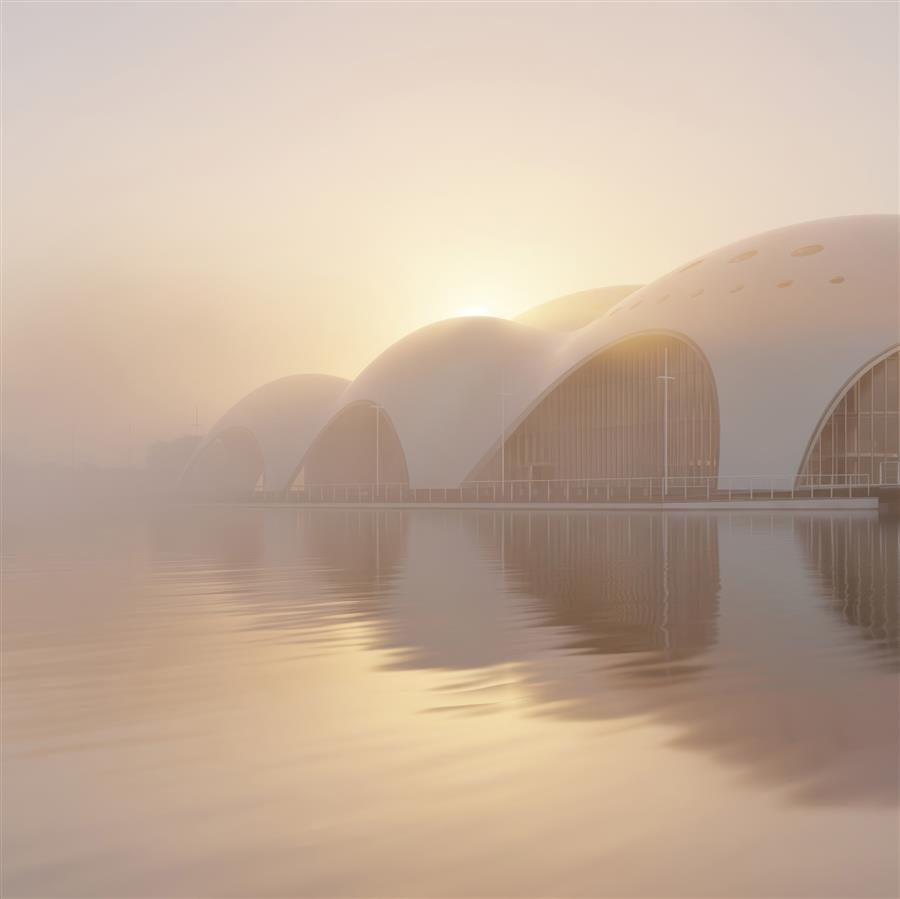

Renzo Piano Building Workshop (RPBW), in collaboration with Sydney and Hanoi-based PTW Architects, has begun construction of the Isola della Musica, a new opera house and convention center in Hanoi, Vietnam. Commissioned by Sun Group, the project was first conceived in 2017 and forms part of a broader masterplan that reshapes the existing boundary between West Lake and ??m Tr? Lake. Inspired by the region's history of pearl cultivation, the building features a series of curved concrete shells whose forms and surfaces evoke the texture and luminosity of mother-of-pearl.
![]()
Isola della Musica將位于一個新形成的島嶼上，該島嶼是通過移除約13,347平方米的現有土地而形成的，它將連接西湖和??m trong湖。設計團隊提出了一種涉及護堤系統的替代方法，而不是使用傳統的圍堰在水中施工，允許使用標準的施工設備，同時最大限度地減少對環境的破壞。該建筑似乎從水中升起，在兩個湖泊之間建立了視覺聯系，并創造了一個從周圍海岸可見的新的文化地標。

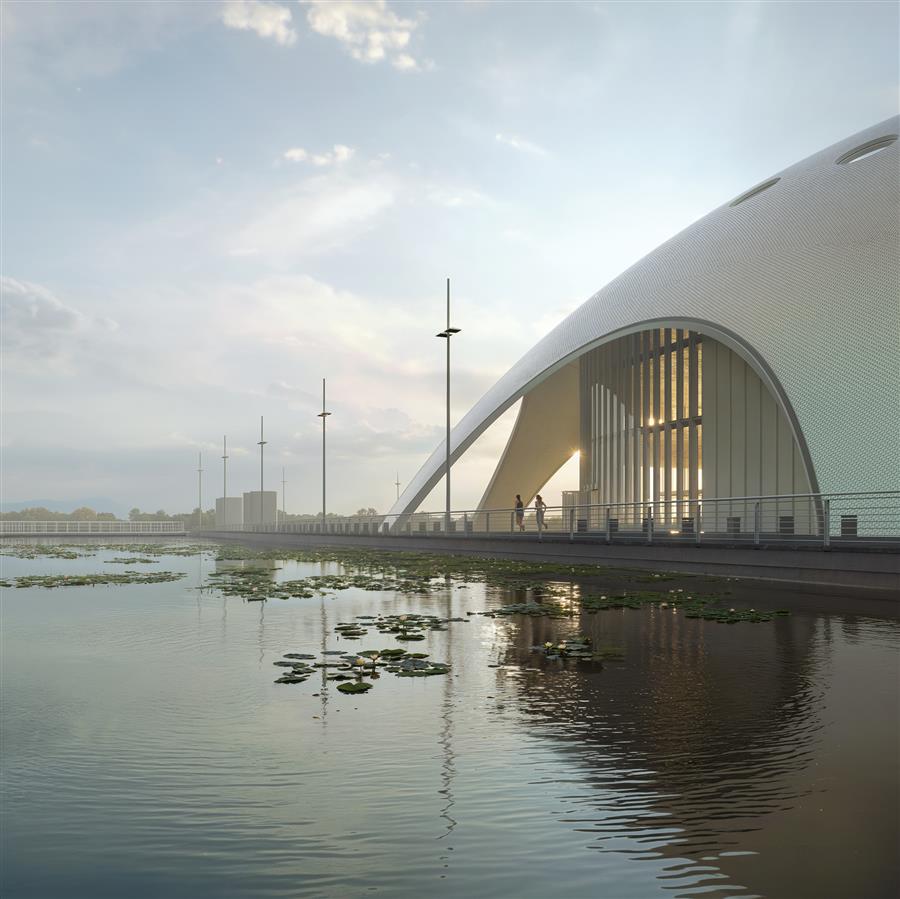

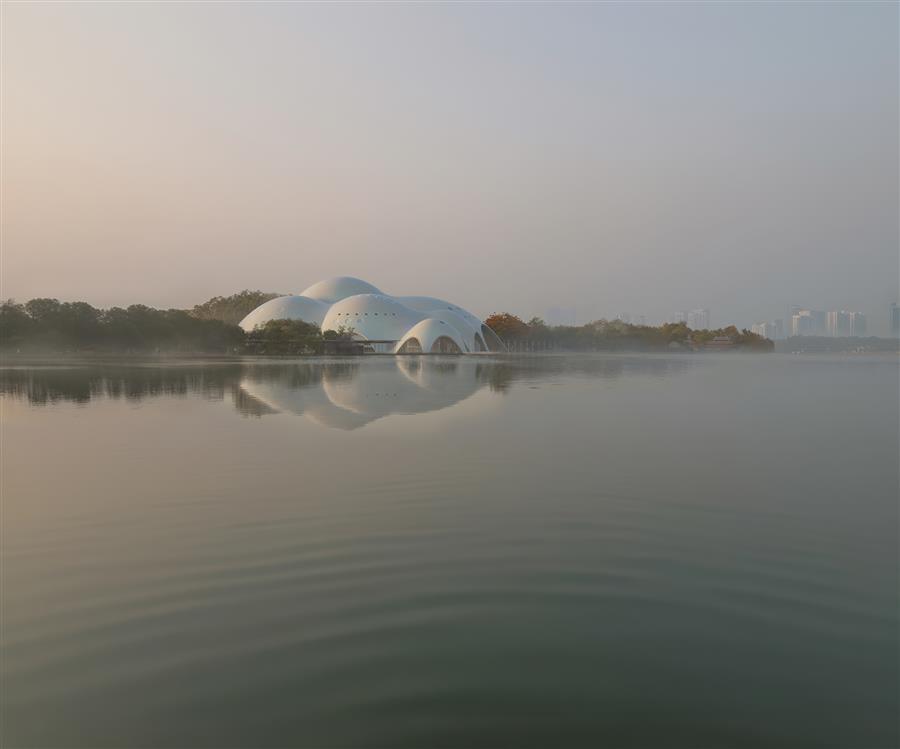

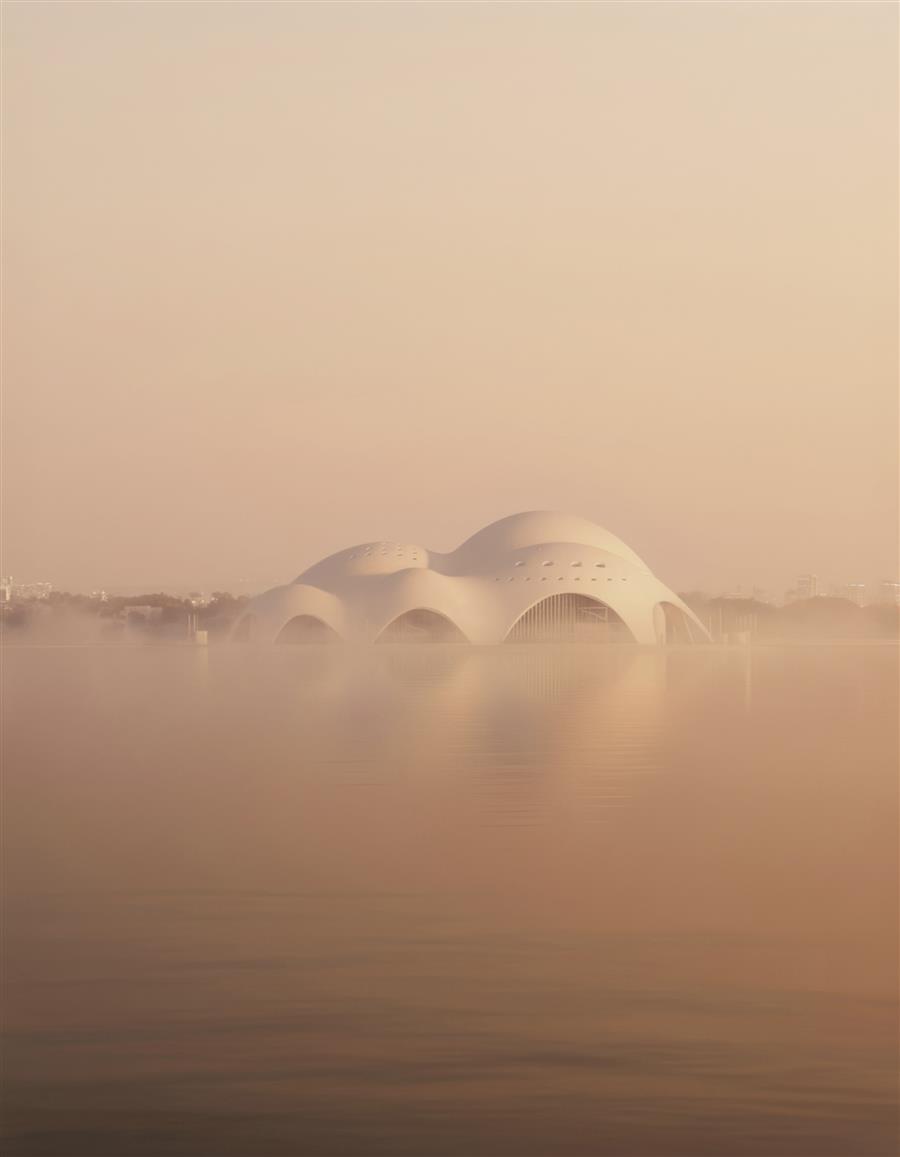

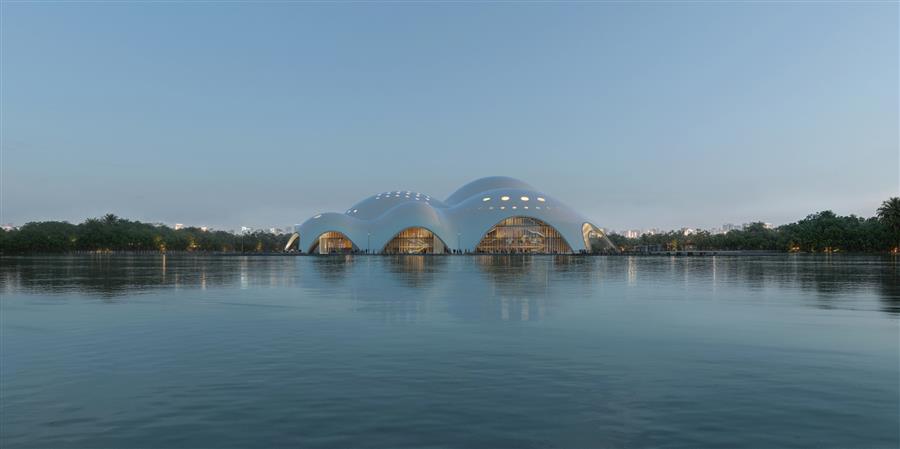

The Isola della Musica will be situated on a newly formed island, created by the removal of approximately 13,347 square meters of existing land, which will reconnect West Lake and ??m Tr? Lake. Instead of using traditional coffer dams for construction in water, the design team proposed an alternative method involving a system of berms, allowing the use of standard construction equipment while minimizing environmental disruption. The building will appear to rise from the water, establishing a visual link between the two lakes and creating a new cultural landmark visible from the surrounding shores.
![]()
該項目由其薄肋混凝土外殼定義，這是一個完全在壓縮下工作的三維懸鏈線結構。這種幾何結構通過有限數量的內部支撐和周邊點有效地分配負載，創造了一種輕便而穩定的形式。外殼容納肋之間的開口，在不影響結構完整性的情況下將光線帶入內部。該設計采用了一個集結構、外殼和聲學性能于一體的分層系統，并覆蓋了作為防雨屏的次級外皮。

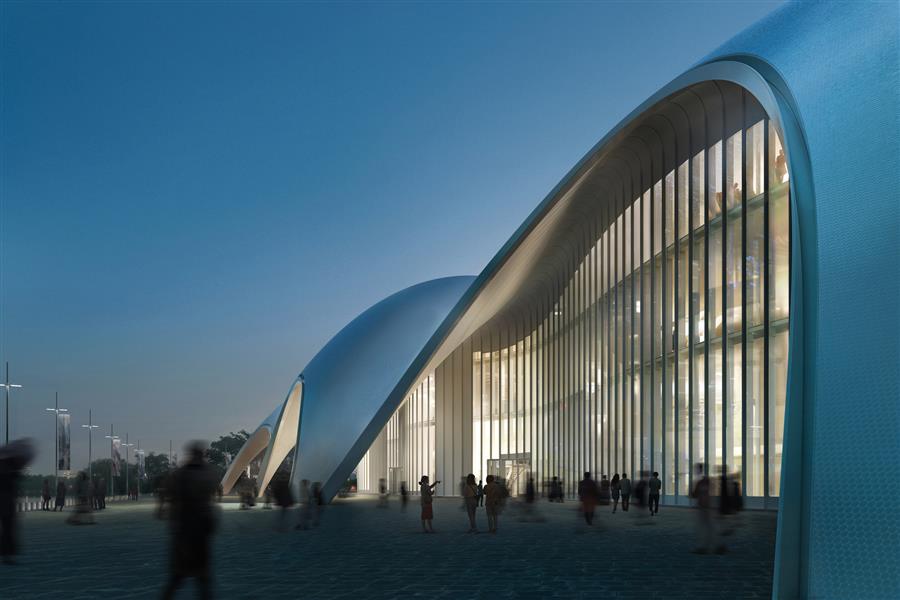

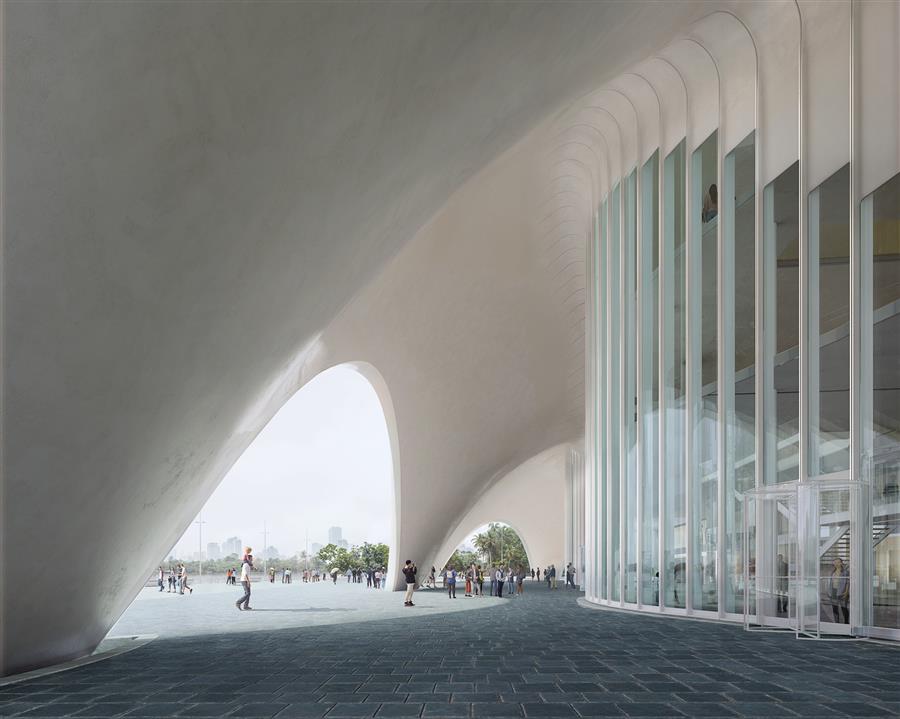

The project is defined by its thin ribbed concrete shell, a three-dimensional catenary structure that works entirely in compression. This geometry efficiently distributes loads through a limited number of internal supports and perimeter points, creating a lightweight yet stable form. The shell accommodates openings between the ribs to bring light into the interiors without compromising structural integrity. Covered by a secondary outer skin that acts as a rain screen, the design uses a layered system that integrates structure, enclosure, and acoustic performance.
![]()
![]()
外部是不同尺寸的瓷磚，遵循外殼的曲率，產生一個動態的、彩虹色的表面，隨著光線和天氣條件的變化而改變外觀。新的文化綜合體包括兩個主要場館：一個有1800個座位的歌劇院和一個有1000個座位的會議廳，這兩個場館都是為了靈活地容納各種表演和活動而設計的。該項目將先進的結構工程與材料精度相結合，以表達數學，自然和工藝的綜合。
The exterior is envisioned in ceramic tiles of varying sizes, following the curvature of the shell and producing a dynamic, iridescent surface that changes appearance with shifting light and weather conditions. The new cultural complex includes two main venues: a 1,800-seat opera hall and a 1,000-seat convention hall, both designed for flexibility to accommodate diverse performances and events. The project combines advanced structural engineering with material precision to express a synthesis of mathematics, nature, and craftsmanship.
![]()
![]()
