FNN可持續發展中心被設計在Tekfen建筑公司位于杰伊漢的機器維護設施內，用于檔案館、博物館和行政辦公室。在項目區域，還包括一個鋼鐵制造車間，主要目的是突出鋼，它構成了建筑的結構系統，作為一個設計元素。檔案館是一個完全自我封閉的項目，博物館是一個完全外向的項目，而辦公室則是一個半封閉半開放的有機體。設計的主要參數之一是在單一結構中形成一個具有不同類型程序的質量。
FNN Sustainability Center was designed within Tekfen Construction's Machine Maintenance Facilities in Ceyhan for archive, museum, and administrative office use. In the project area, which also includes a steel manufacturing workshop, the main purpose was to highlight the steel, which forms the structural system of the building, as a design element. The archive is a completely self-enclosed program, the museum is a completely extroverted program, and the office acts as an organism that is partly closed and partly open. One of the main parameters in the design was forming a mass in a single structure with this different type of program.
![]()
![]()
雖然檔案室被設計成一個自封閉的區域，但它是用鋼筋混凝土結構建造的。另一方面，辦公室的設計將鋼結構完全展示在建筑內部，由透明玻璃幕墻支撐。在這個完全封閉和完全開放的項目的交匯處，博物館被放置為兩個不同項目的門廳和交匯點。展覽區和辦公室相互整合，圖書館設計在辦公室需要隔音的表面上，其余所有墻壁的前景都保持透明。這確保了空間在彼此之間流動，并且可以觀察到建筑內部運動的連續性。

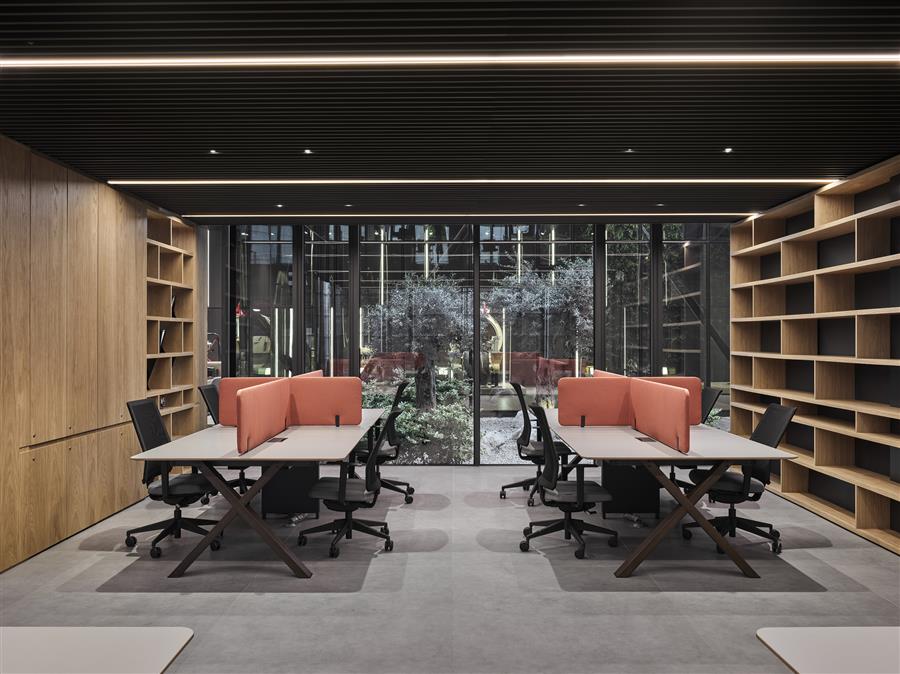

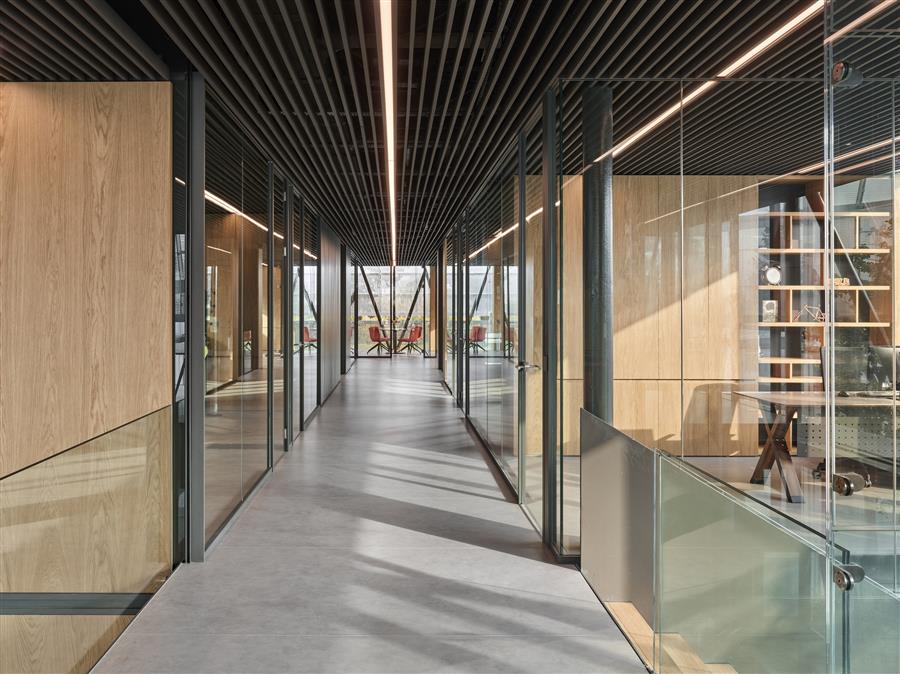

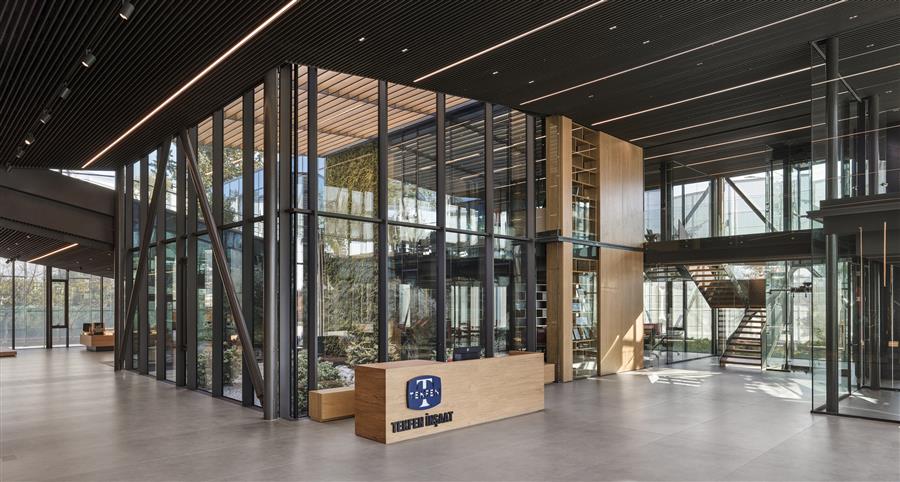

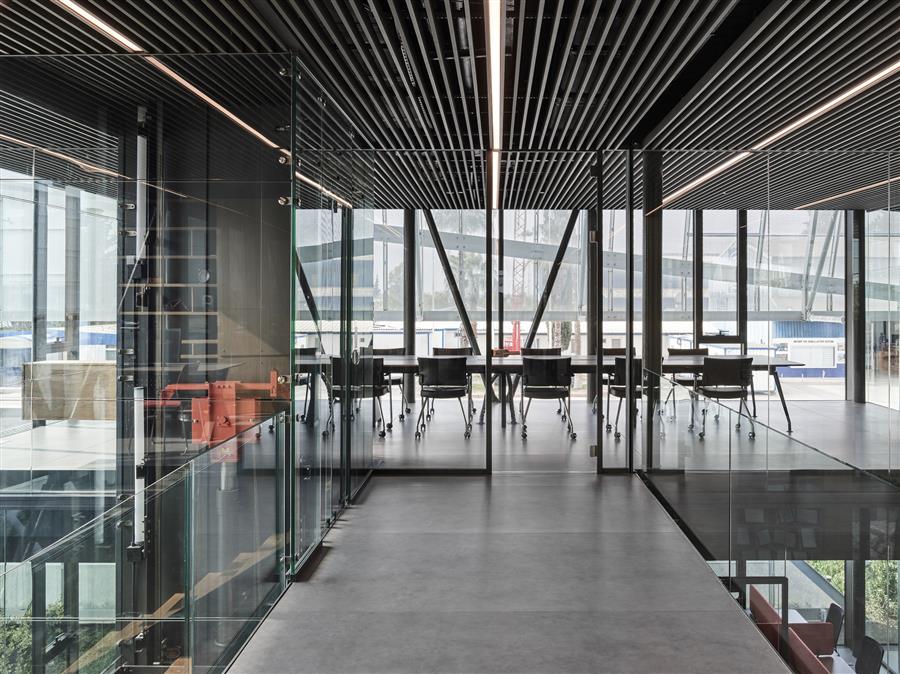

While the archive room was designed as a self-enclosed area as a program, it was built as reinforced concrete structurally. On the other hand, offices are designed to show the steel structure completely inside the building, supported by transparent glass facades. At the interp of this fully closed and fully open program, the museum is placed as the foyer and meeting point of two different programs. The exhibition area and the offices are integrated with each other, libraries are designed on the surfaces where sound insulation is required in the offices, and transparency is kept in the foreground on all the remaining walls. It is ensured that the spaces flow within each other and that the continuity of the movement within the building can be observed.
![]()
![]()
![]()

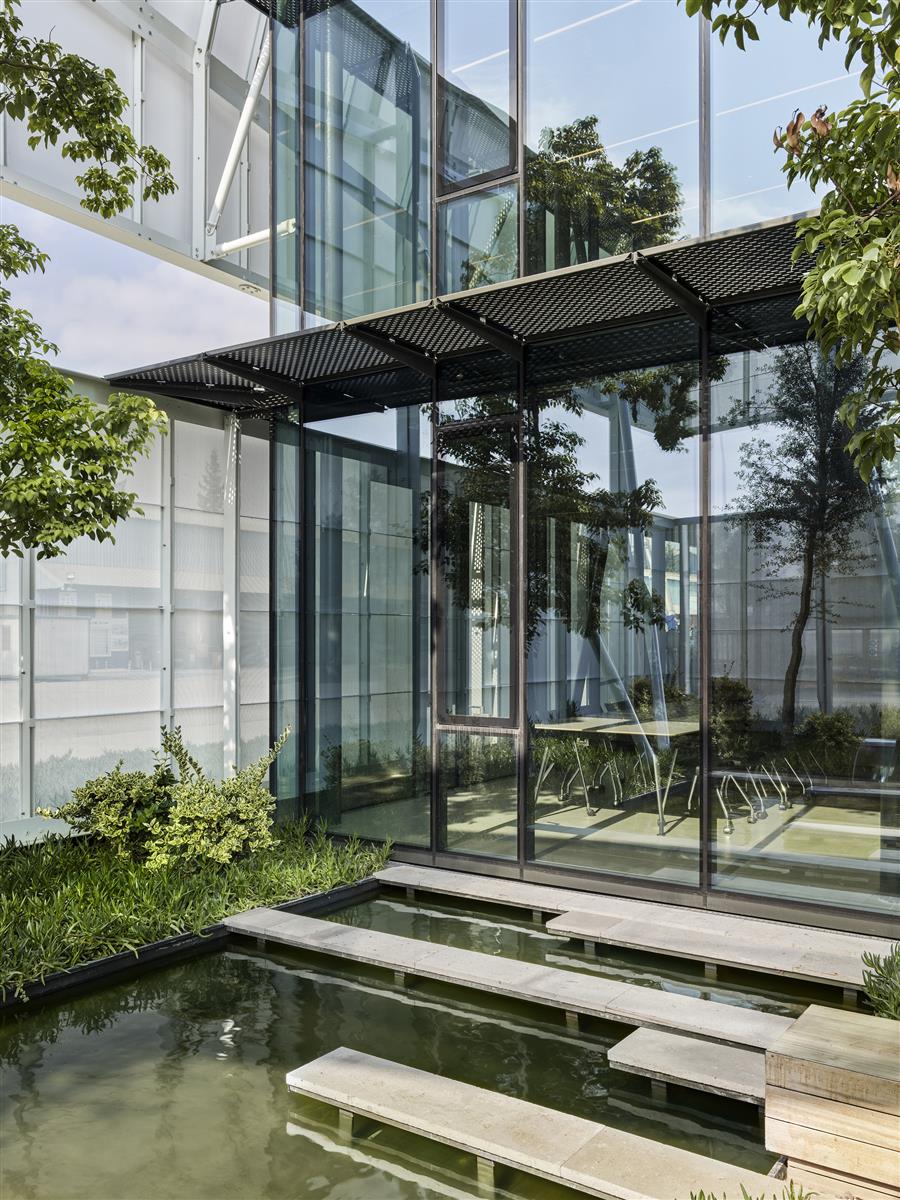

完全圍繞建筑的多用途金屬穿孔外殼旨在通過改變內部建筑之間的距離來創建內部花園和綠色區域。外殼還可以防止建筑物直接暴露在陽光下，在辦公空間中創造更舒適的工作環境。通過在建筑內部創建一個綠色庭院，包括檔案、辦公和展覽區域，在所有空間之間提供綠色過渡和空氣流通。通過整合兩個花園中的游泳池，為辦公人員創造了休息和新鮮空氣的區域。這種空氣循環發揮了積極的作用，游泳池融入花園，為辦公室工作人員創造了一個呼吸的間隙。

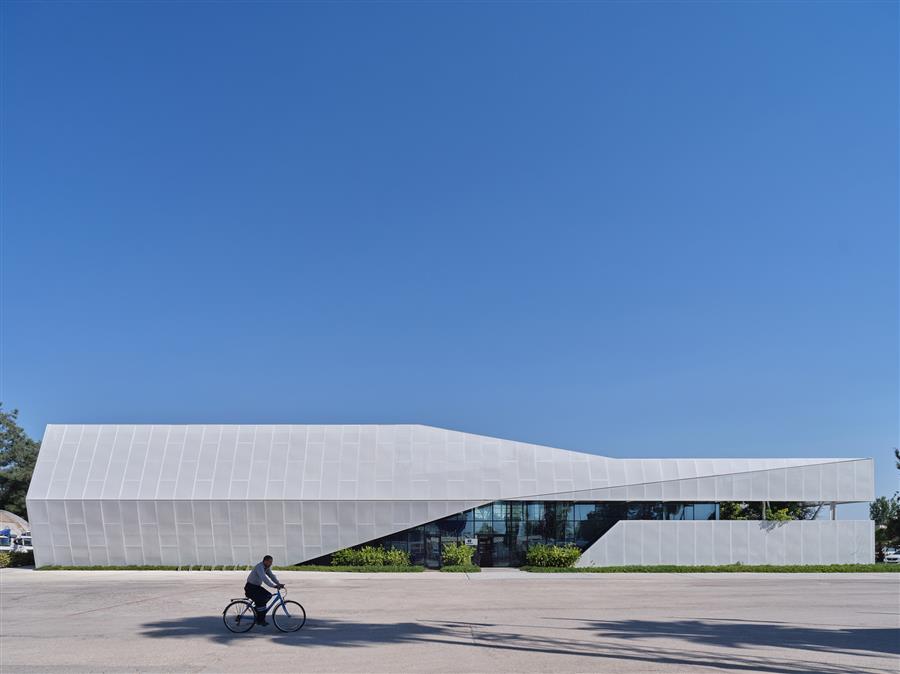

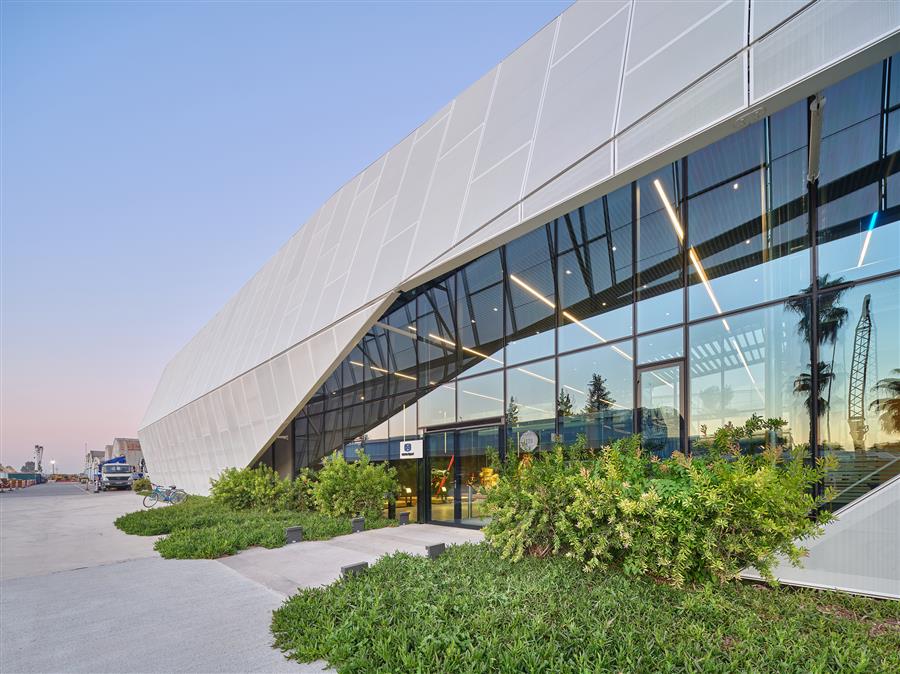

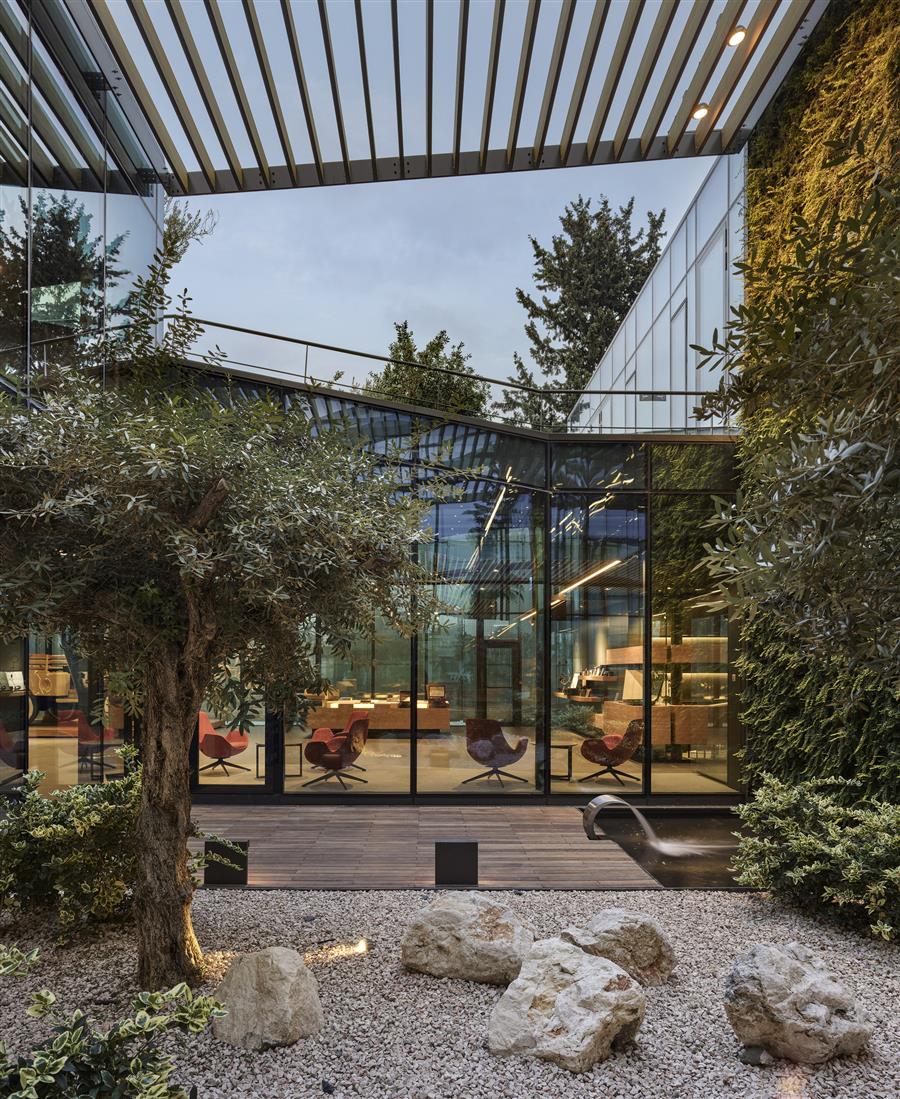

The multi-purpose metal perforated shell that completely surrounds the building is aimed to create inner gardens and green areas by changing the distances between the interior building. The shell also prevented the building from being directly exposed to sunlight, creating a more comfortable working environment in office spaces. By creating a green courtyard in the inner building, which includes archive, office, and exhibition areas, a green transition and air circulation were provided between all spaces. Resting and fresh air areas have been created for office staff by integrating pools in both gardens. This air circulation played an active role with the pools integrated into the gardens creating a gap for office staff to breathe.
![]()
![]()
![]()
雖然外殼內部的建筑被設計為綠色屋頂，但為工作區域創造了綠色環境。這個綠色屋頂區域也被改造成一個多功能空間，設計有座位區，可用于邀請和慶?；顒?dòng)。
While the building inside the shell was designed as a green roof, a green environment was created for the working areas. This green roof area has also been transformed into a versatile space designed with seating areas that can be used for invitations and celebrations.
![]()
![]()
![]()
在提供所有這些的同時，F(xiàn)NN可持續發展中心已經獲得了LEED白金證書，因?yàn)樗軌蛟诰坝^區域使用、植物選擇、照明設計和光伏板中產生45%的能源。
While providing all these, the FNN Sustainability Center has been awarded the LEED Platinum Certificate with its ability to generate 45% of the energy used in the building with landscape area uses, plant selection, lighting design, and photovoltaic panels.
![]()
![]()
![]()
![]()
![]()
項目圖紙
![]()
![]()

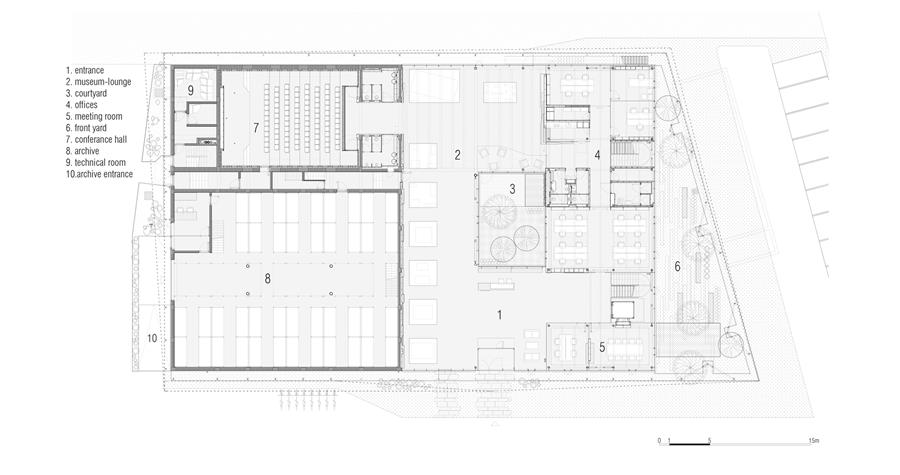

▲平面圖
![]()
![]()

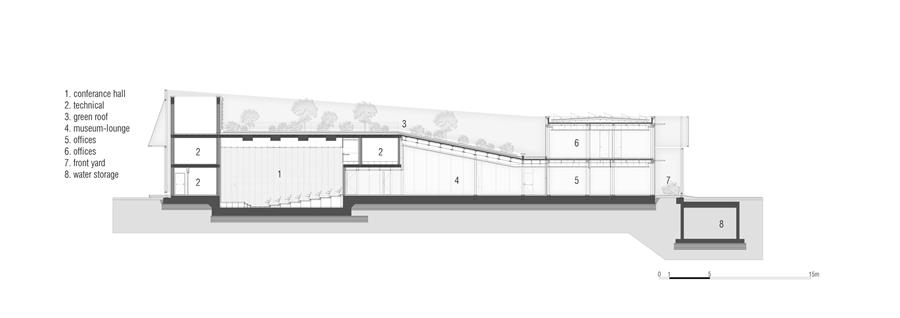

▲剖面圖
![]()
![]()

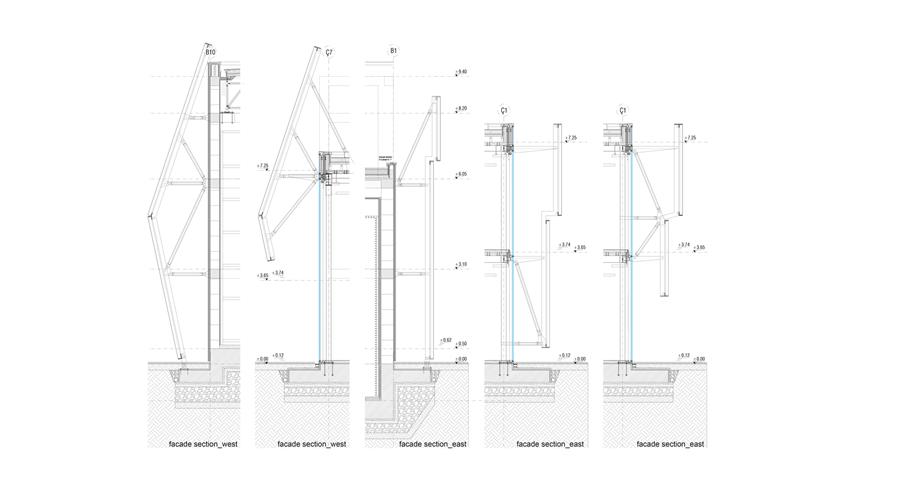

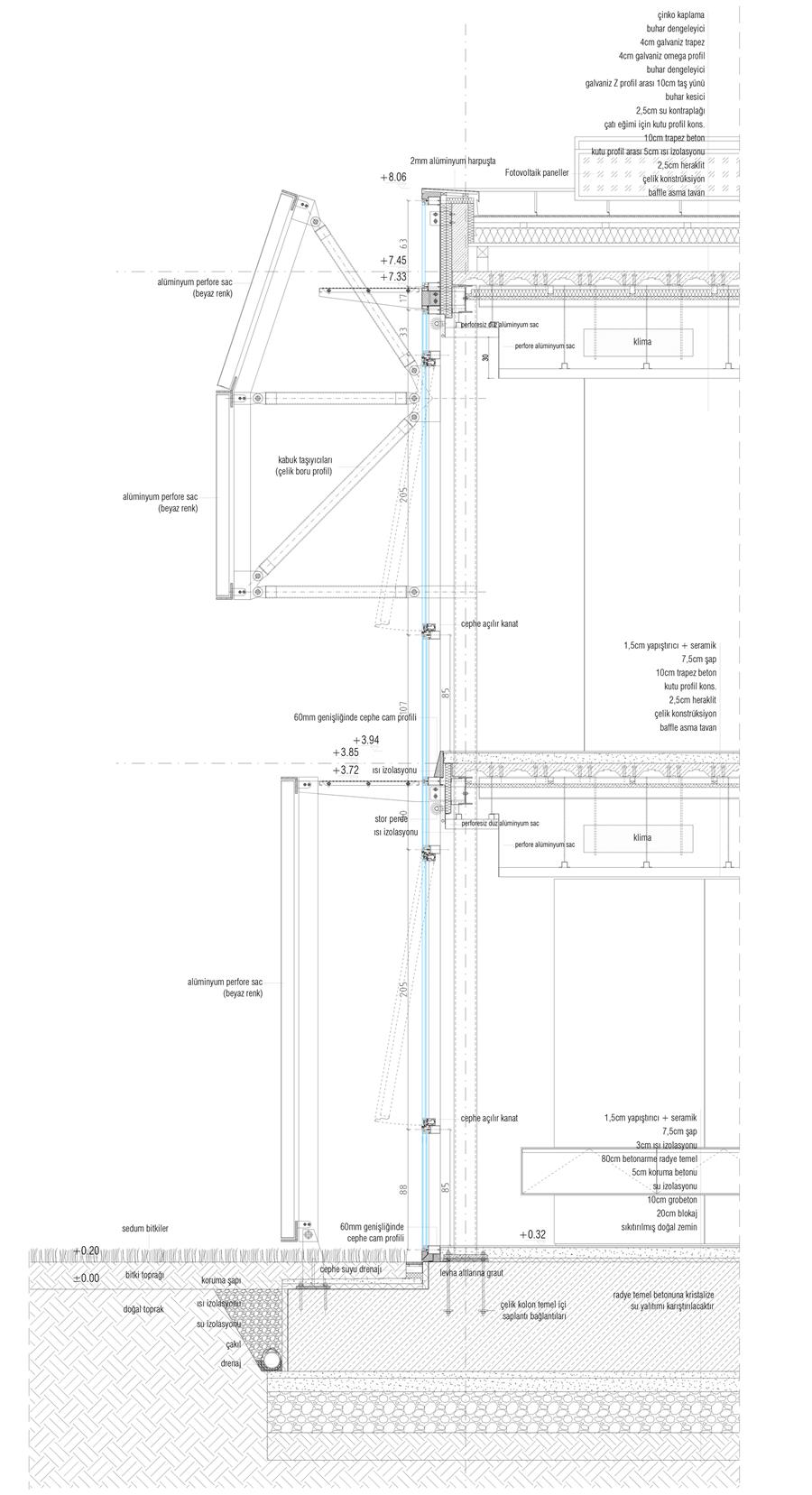

▲節點大樣
