• 項目名稱

  杭州市第一人民醫院桐廬醫院

• 項目業主

  桐廬縣城市發展經營有限公司

• 設計單位

  浙江大學建筑設計研究院（UAD）

• 項目地址

  浙江 桐廬

• 設計總負責

  陳建

• 設計主創

  陳建

• 建筑設計

  陳建、黎冰、沈濟黃、喬洪波、應倩、徐昉、許益盛、牧歌、陳駿峰、姜哲遠、黃愷悅、嚴雪姣、祖武、張楊茜

• 結構設計

  沈捷攀、尹雄、王財權、朱旦陽、張辰

• 給排水設計

  汪波、鄭雪梅、金藝蓓、范永歡

• 電氣設計

  毛闐、鄭健 、鄭建洲、章偉康、徐鑒其

• 暖通設計

  張敏敏、吳毅學、何梅玲、陳戴威、胡亦奇、李浩軍

• 智能化設計

  馬健、張武波、陳佳、倪高俊、王菲

• 幕墻設計

  姜浩、黃麗、周志敏、俞星、黃培軍

• 室內設計

  孫海峰、鄭文杰、葉筱迪、毛文江、陳崢力、閉獻高、張建芬

• 景觀設計

  高飛、徐偉東、李偉強、俞婷、葉星星、林志浩

• 照明設計

  王小冬、劉一晗、馮百樂、吳旭輝

• 巖土設計

  陳赟、楊勤鋒、趙志遠、胡根興、方利澤

• 建筑攝影

  趙強、吳清山

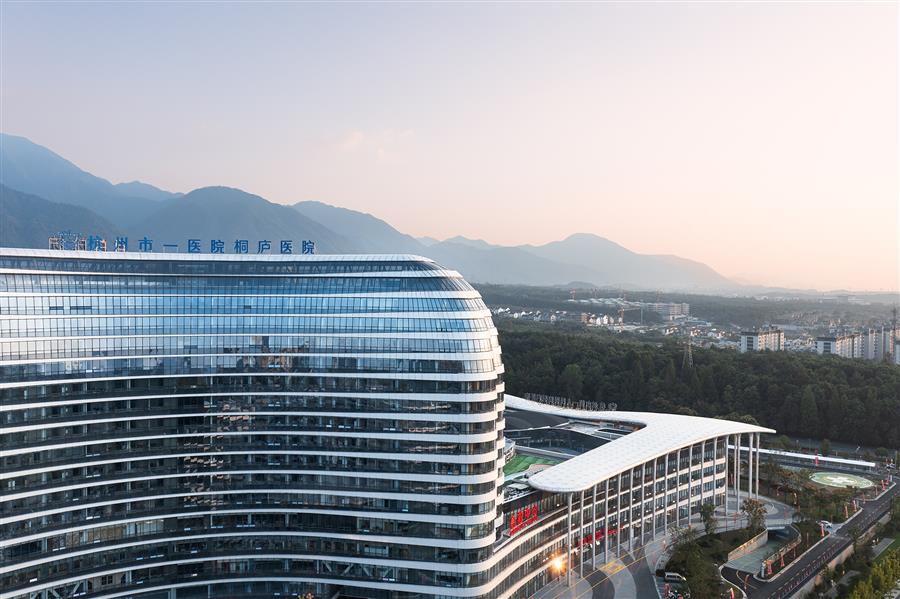

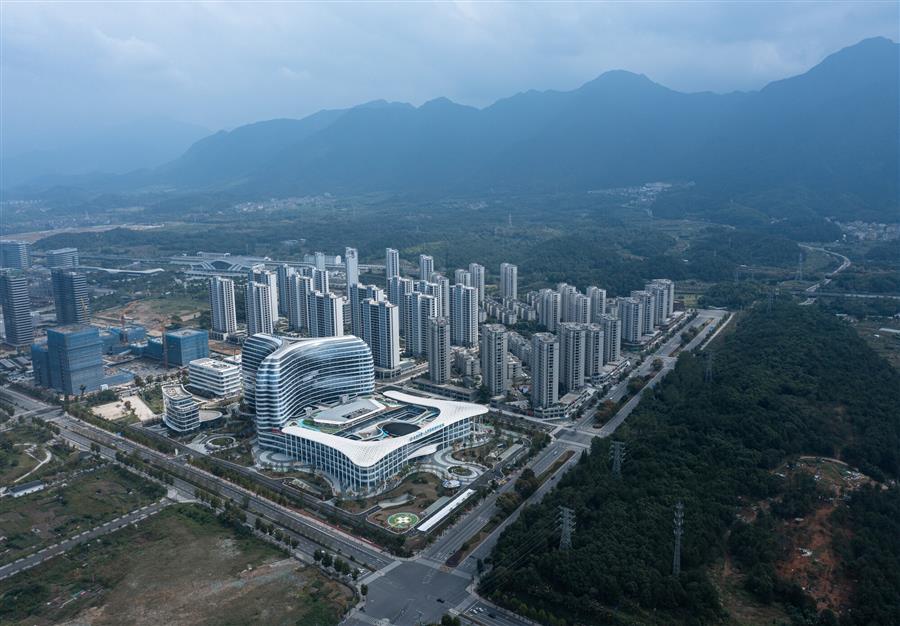

杭州市第一人民醫院桐廬醫院位于桐廬高鐵未來城區塊內，毗鄰杭黃高鐵桐廬站，以桐廬“富春山居”的氣質為背景，建設全鋼結構、綠色三星的綜合性三甲醫院。項目總用地面積約7萬平方米，總建筑面積約20.2萬平方米，其中地上約13.9萬平方米，地下約6.3萬平方米，總床位數1100床。

Hangzhou First People's Hospital Tonglu Branch is situated in the High-speed Rail Future City of Tonglu County. It is adjacent to the Tonglu Station of the Hangzhou-Huangshan High-Speed Railway, with the painting "Dwelling in the Fuchun Mountains" in Tonglu County as the backdrop. The hospital, featuring an all-steel structure, is designed as a comprehensive Grade-A tertiary hospital certified as a Three-star Green Building. The project covers an area of 70,000 m². The total construction area is about 202,000 m², with 139,000 m² above ground and 63,000 m² underground, and a total number of 1,100 beds.

綠葉草，融合自然的未來城市——桐廬醫院的遷建設計，始于2019年全球新冠疫情之前。為緩解省級三甲醫院的診療壓力，同時提升縣級醫院的醫療服務水平，桐廬將人民醫院新院區選址于高鐵未來城，基地周邊道路平整，不遠處群山環繞，顯露出桐廬“富春山居”美景的氣質。而這塊未來新城未開發的土地，也亟待一座空間氣質相符的引領者。

Green Clover, Future City Integrated with Nature - The relocation and reconstruction design of Hangzhou First People's Hospital Tonglu Branch began prior to the outbreak of the global COVID-19 pandemic in 2019. To alleviate overcrowding in provincial Grade-A tertiary hospitals while elevating medical services at the county level, the hospital has chosen the High-speed Rail Future City for its new campus. The site features well-developed surrounding roads and is embraced by nearby mountain ranges, embodying Tonglu's natural beauty captured in the classical paining "Dwelling in the Fuchun Mountains". This undeveloped land in the emerging urban district also urgently awaits a pioneering architectural presence that aligns with its spatial character.

2020年，項目處于概念設計階段。這種規模的縣級醫院是規?；?、高密度新建醫院的代表。設計以建筑的本質為基礎，暫時拋開醫療流程和物流系統的復雜考慮，從狹窄和細長的矩形場地開始。由于場地不是南北朝向，而是有35度的偏差，設計首次創新地使用了“三葉草形”的護理單元：三個護理單元被安排在同一樓層，中心有一個共享的電梯大廳。這種模式不僅為所有三個護理單元提供了充足的日光和通風，而且還提高了循環核心的效率。此外，它適應未來重點部門的發展和大病房的需要，同時允許實施多學科團隊（MDT）醫療實踐。為了適應現有醫務人員的使用習慣，同時也適應未來的發展，設計采用了貫通式醫療街的折衷方案。這條醫療街將門診樓、醫療技術中心和住院樓三大功能區相互連接，形成一個統一的醫療綜合體。

In 2020, the project was in the stage of conceptual design.A county-level hospital of this scale was representative of large-scale and high-density new hospitals. The design was based on the essence of architecture, temporarily setting aside the complex considerations of medical processes and logistics systems, and started from the narrow and elongated rectangular site. Since the site was not oriented due north-south but had a 35-degree deviation, the design innovatively used a "clover-shaped" nursing unit for the first time: three nursing units were arranged on the same floor, with a shared elevator lobby in the center. This model not only provided sufficient daylight and ventilation for all three nursing units but also improved the efficiency of the circulation core. Moreover, it accommodated future development of key departments and the needs of large wards, while allowing for the implementation of Multi-Disciplinary Team (MDT) medical practice. In order to accommodate the existing medical staff's usage habits while also adapting to future development, the design adopted a compromise solution of a through-type medical street. This medical street interconnects the three major functional zones - outpatient building, medical technology center, and inpatient building - forming a unified medical complex.

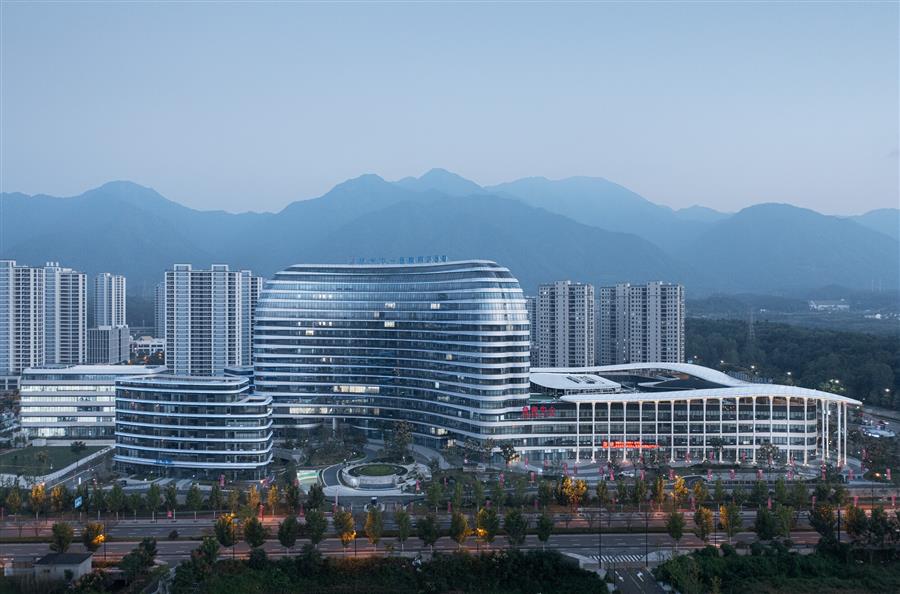

視覺上，設計從寬敞明亮的門診大廳開始，從地板到天花板都是開放的。寬敞的無柱主醫療街連接了門診模塊和醫療技術功能，延伸到由多部電梯服務的住院電梯大堂，并連接到住院接待大廳。在實際使用中，患者可以在寬敞的醫療街內清晰地看到門診和醫療技術功能的劃分和定位，方便患者識別方向，方便患者到達目的地。葉形的綜合主體建筑以微妙的曲線勾勒出其末端和天際線，延伸了“富春山居”的流動景觀美學。兩側的行政大樓和傳染病樓自然地?fù)肀еC合樓，呼應著遠山的起伏。銀色漸變鋁板和藍灰色玻璃的結合巧妙地呈現了過去與未來之間的對話。

Visually, the design starts with the spacious and bright outpatient hall, which is open from floor to ceiling. The spacious, column-free main medical street connects outpatient modules and medical technology functions, extends to the inpatient elevator lobby served by multiple elevators, and links to the inpatient reception hall. In actual use, patients can clearly see the division and orientation of the outpatient and medical technology functions from within the spacious medical street, allowing them to easily identify directions and conveniently reach their destinations. The leaf-shaped comprehensive main building extends the flowing landscape aesthetic of the "Dwelling in the Fuchun Mountains" with subtle curves to outline its ends and skyline. The administrative building and the infectious diseases building on both sides naturally embrace the comprehensive building, echoing the undulations of the distant mountains. The combination of silver gradient aluminum panels and blue-gray glass subtly presents a dialogue between the past and the future.

彈性設計和靈活的空間——醫療建筑的設計需要優先考慮功能，以確保診斷和治療的效率。另一方面，醫院建筑應該以服務用戶為中心。它不再是冷冰冰的“治療機”，而是面向患者、家屬、醫護人員和輔助人員的服務型空間。為了確保在有限的場地面積內實現最佳的醫療流程，醫院?jiǎn)T工采用同質化的模塊化空間來提高功能效率，并提供適應性強的靈活空間來容納各種服務。醫院以開放、人性化設計、服務為核心，提升空間品質。

Resilient Design and Flexible Spaces - The design of medical buildings needs to prioritize functionality to ensure the efficiency of diagnosis and treatment. On the other hand, hospital architecture should focus on serving users. It should no longer be a cold "treatment machine", but rather a service-oriented space for patients, their families, medical staff, and support personnel. To ensure optimal medical processes within the limited site area, the hospital employes homogenized modular spaces for functional efficiency, and provides adaptable flexible spaces to accommodate diverse services. With openness, human-centered design, and service at its core, the hospital enhances its spatial quality.

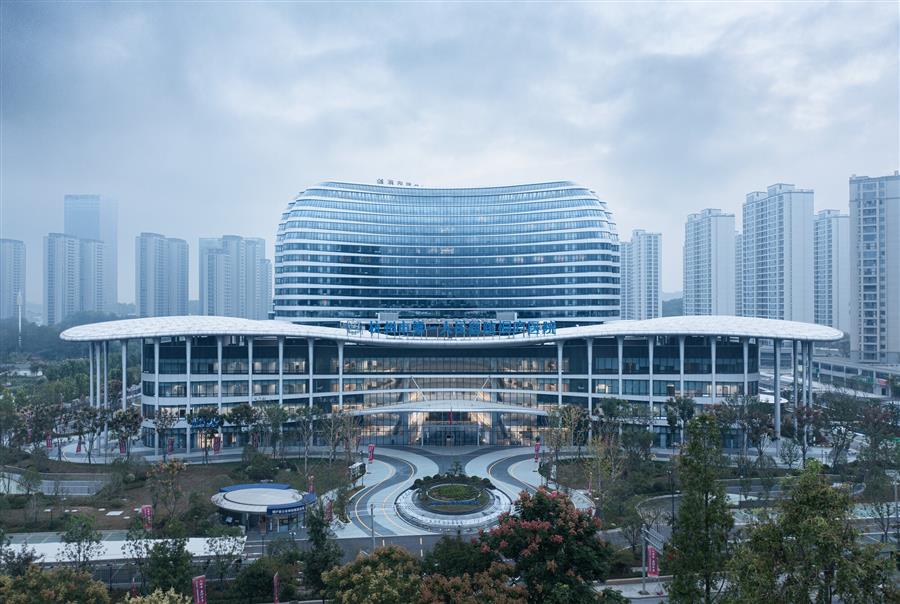

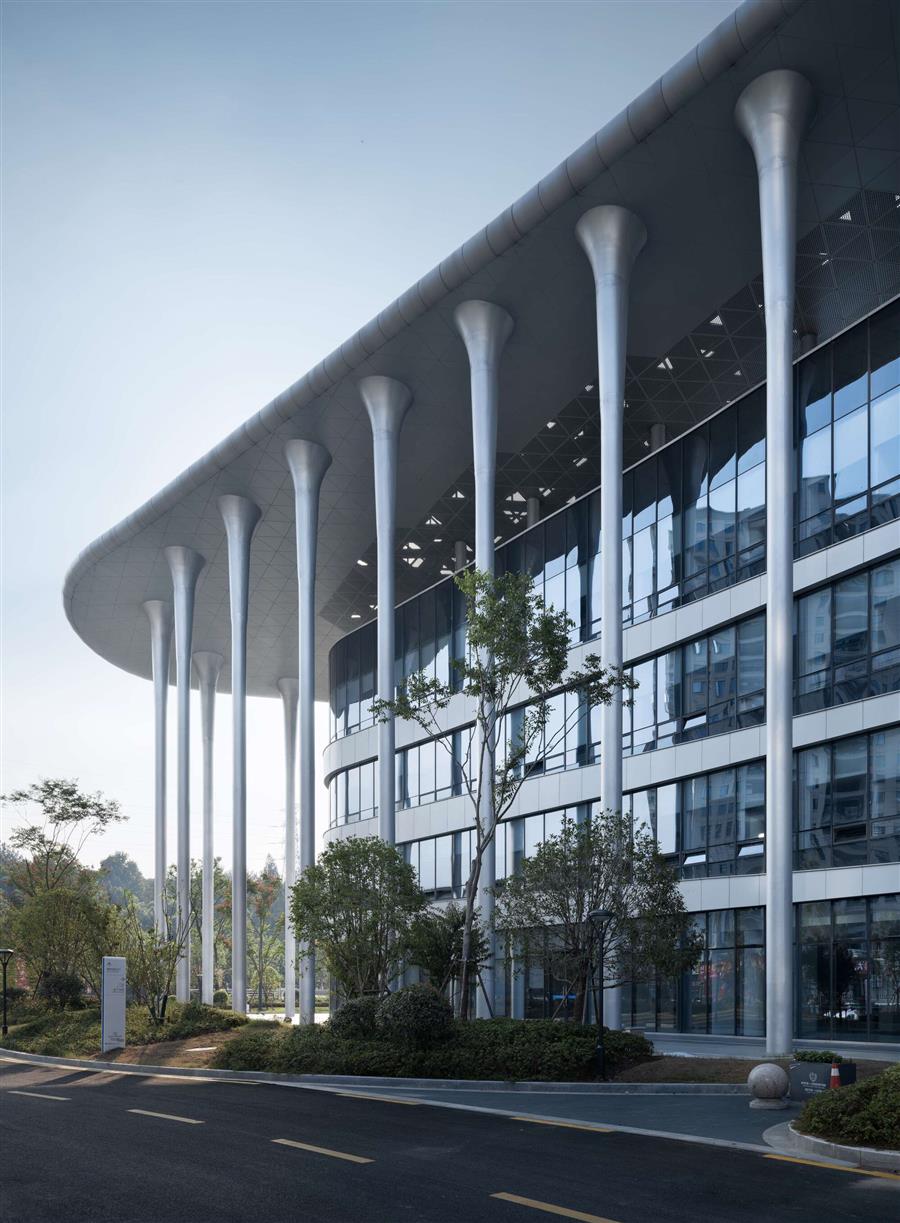

在裙樓的設計中，柱廊和懸臂屋頂也被納入其中。有節奏的柱廊序列不僅為行人提供遮陽避雨的場所，還創造了一個過渡性的灰色空間，連接內部和外部，緊張和放松之間，為原本寒冷嚴峻的醫院帶來一絲古典美和溫暖。在門診部的設計中，采光充足的庭院被用作功能間隔，門診部模塊布置在醫療街的兩側。模塊化單元提供標準化的等候區和臨床空間，并根據器官特異性疾病組織功能布局。在住院樓的三個護理單元之間，三個朝向不同的陽光共享區域圍繞中央循環核心布置。這些區域具有獨特的建筑形式，提供充足的日光和勻稱的空間。它們可以作為醫務人員的休閑區，也可以作為患者家屬的交流空間。

In the design of the podium, colonnades and cantilevered roofs have been additionally incorporated. The rhythmic sequence of the colonnades not only provides shelter from sun and rain for pedestrians, but also creates a transitional gray space bridging interiors and exteriors, and between tension and relaxation, bringing a touch of classical beauty and warmth to the otherwise cold and stern hospital. In the design of the outpatient department, light-filled courtyards are used as functional spacers?, with outpatient modules arranged on both sides of the medical street. The modular units deliver standardized waiting zones and clinical spaces, with functional layouts organized based on organ-specific diseases. Between the three nursing units in the inpatient building, three sunlit shared areas with different orientations are arranged around the central circulation core. With unique architectural forms, these areas offer ample daylight and well-proportioned spaces. They can serve as leisure areas for medical staff or as communication spaces for patients' families.

全鋼結構綠色三星級醫院——后疫情時代，各地醫院建設如火如荼。醫院建設的規模大、工期短、節奏快，也給醫院的設計和施工帶來了一系列問題。本工程采用全鋼結構。與混凝土相比，鋼材更加節能環保。鋼結構建筑的模塊化建造大大加快了建造過程。該項目的建成為鋼結構在醫院建筑中的應用提供了寶貴的經驗。

Fully Steel-Structured Green Three-Star Hospital - In the post-pandemic era, hospital construction is in full swing across various regions. The large scale, short construction period and fast pace of hospital construction have also brought a series of problems to the design and construction of hospitals. An all-steel structure is adopted for the project. Compared with concrete, steel is more energy-efficient and eco-friendly. The modular construction of steel structure buildings significantly speeds up the building process. The project's completion provides valuable experience for using steel structures in hospital buildings.

輕微的曲率和成本控制——盡管建筑的末端和天際線具有柔和的曲率，但內部功能空間采用模塊化設計。為了在有限的預算內實現未來主義的外觀，建筑的曲率進行了多次優化，立面線的寬度也進行了調整。這使得這座全鋼結構醫院得以以盡可能低的成本建成，符合中國最高的三星級綠色建筑標準。

Slight Curvature and Cost Control - Although the building features gentle curvature at its ends and skylines, modular design is employed for the internal functional spaces. To achieve a futuristic look within a limited budget, the building's curvature was optimized multiple times, and the width of the facade lines was adjusted. This allowed the creation of a full steel structure hospital – meeting China's highest Three-Star Green Building standards – at the lowest possible cost.

項目圖紙

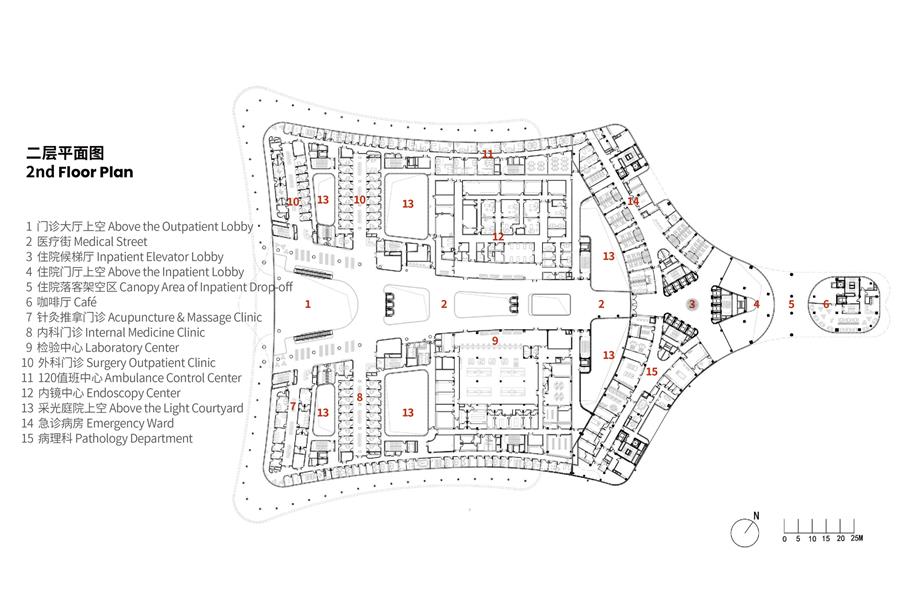

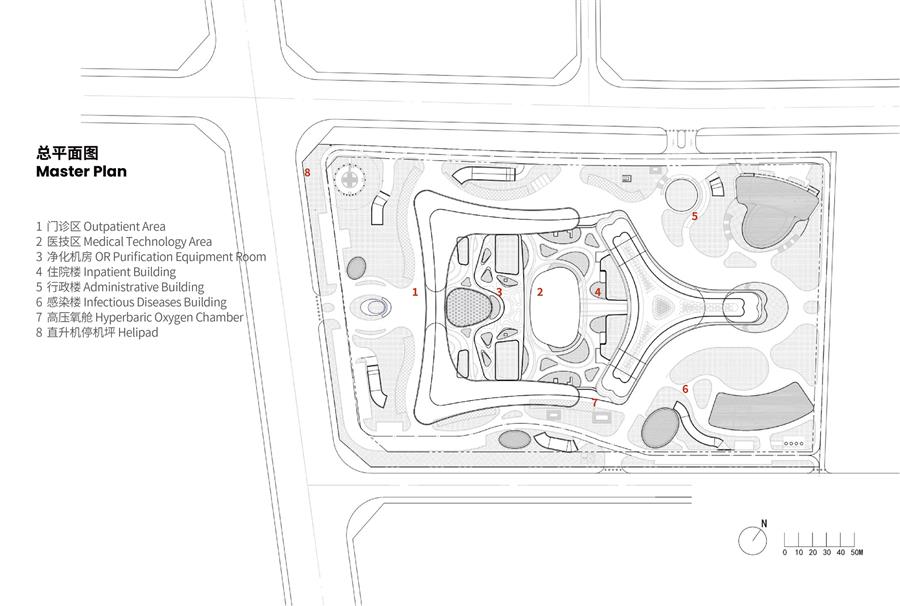

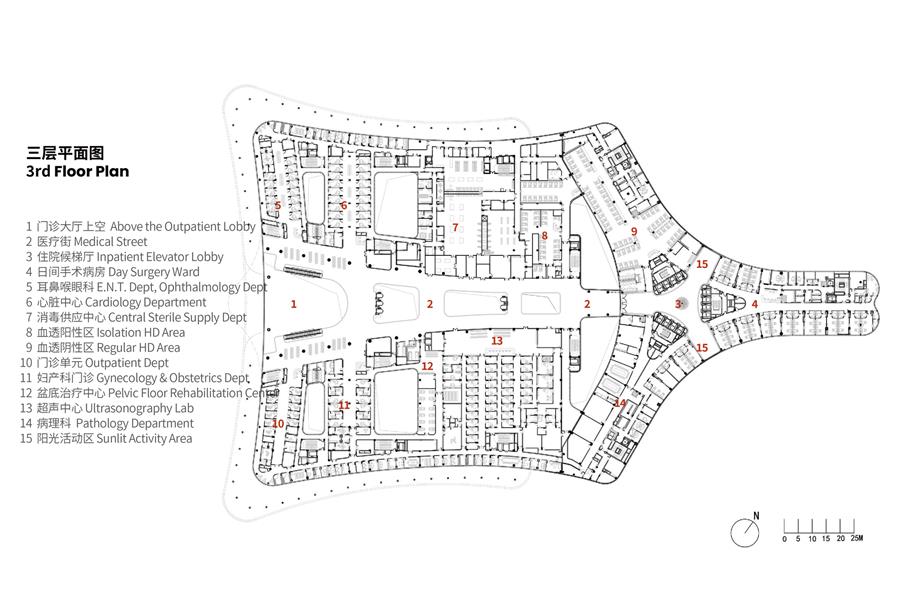

▲平面圖

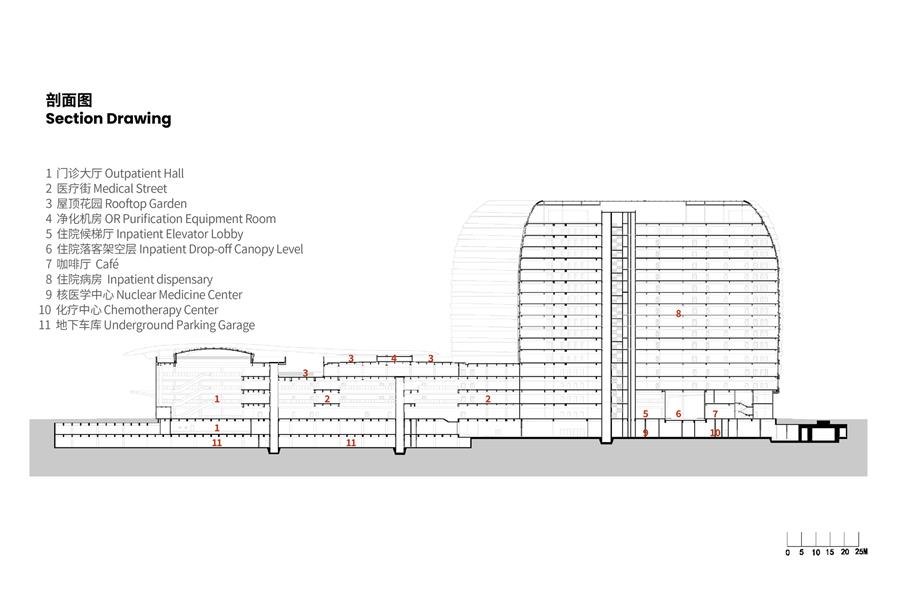

▲剖面圖

▲立面圖

▲分析圖

▲示意圖
